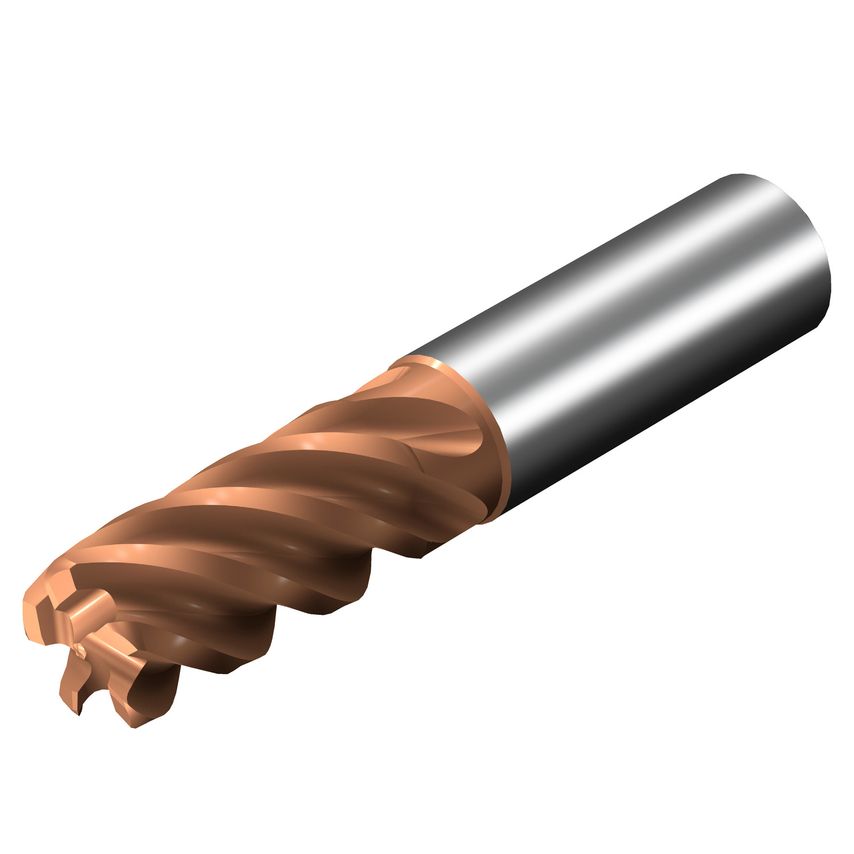

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 22mm |
| Usable Length | 30mm |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | Solid Carbide Endmill |
| MFR Part No. | 7419256 |
| Center Cutting Capability | No |
| Standards Met | COROMANT |
| CoroPak | 17.2 |
| Coating Type | TiAlN+TiSiN |
| Grade | 1710 |
| Shank Type | Cylindrical |
| Maximum Cutting Depth | 22mm |
| Connection Diameter | 25mm |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
| Corner Radius | 2mm |
| Basic Standard Group | Coromant |
| Weight | 75.7g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Functional Length | 72mm |
| Cutting Diameter | 10mm |
| Unit Measured | Metric |
| Coating Process Type | PVD |
