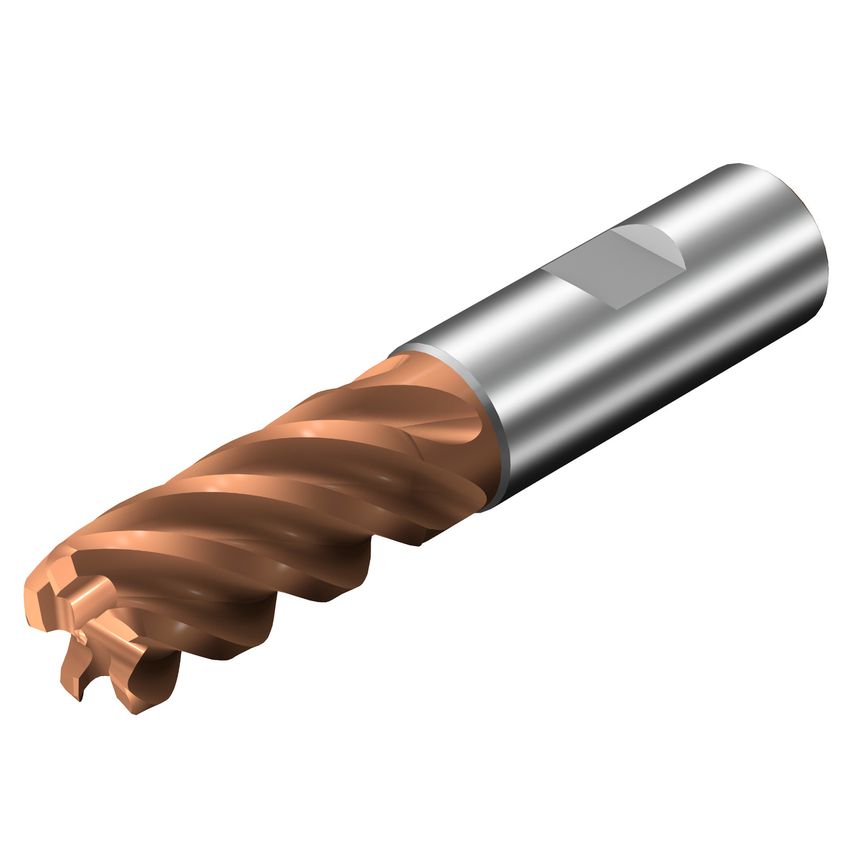

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 3mm |
| Coating Type | TiAlN+TiSiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 34mm |
| CoroPak | 17.2 |
| Product Type | Solid Carbide Endmill |
| Weight | 752g |
| Connection Diameter | 16mm |
| Grade | 1710 |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 22800 1/min |
| Shank Type | Weldon |
| Cutting Diameter | 16mm |
| Standards Met | COROMANT |
| Usable Length | 42mm |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | No |
| Functional Length | 92mm |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Maximum Depth of Cut | 34mm |
| MFR Part No. | 7419270 |
