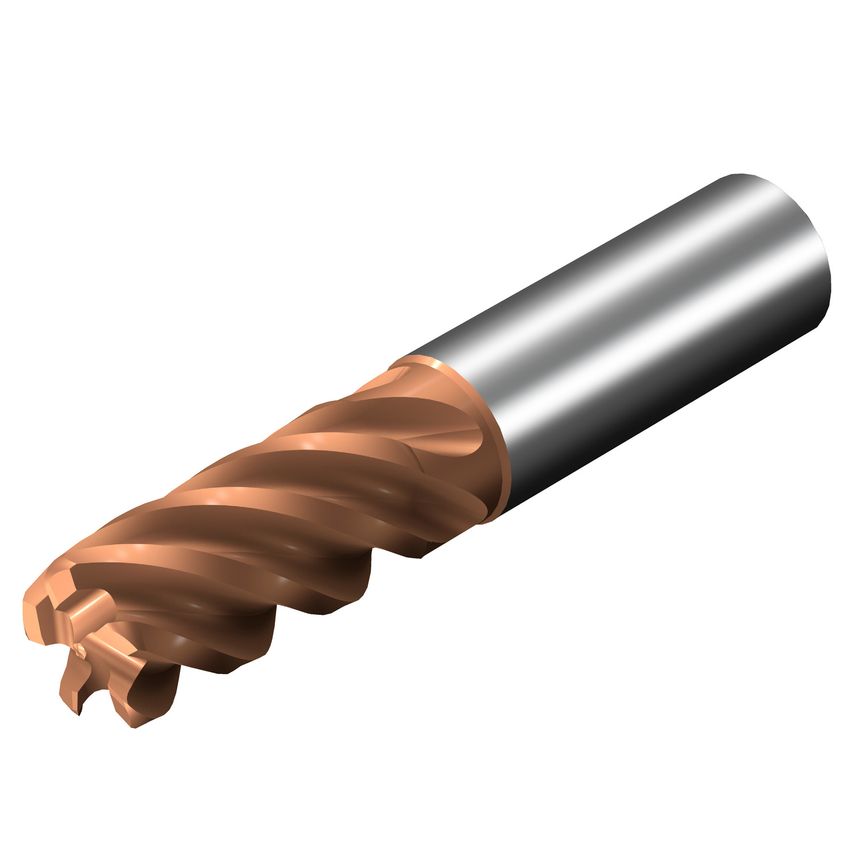

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| Grade | 1710 |
| CoroPak | 17.2 |
| Coolant Entry Style | Without Coolant |
| Usable Length | 42mm |
| Coating Process Type | PVD |
| Weight | 239.5g |
| Product Type | Solid Carbide Endmill |
| Functional Length | 92mm |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 16mm |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 34mm |
| Rotational Speed Maximum | 22800 1/min |
| Coating Type | TiAlN+TiSiN |
| Corner Radius | 3mm |
| Basic Standard Group | Coromant |
| Unit Measured | Metric |
| MFR Part No. | 7419263 |
| Cutting Diameter | 16mm |
| Maximum Cutting Depth | 34mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | No |
| Through Hole Function Property | Yes |
