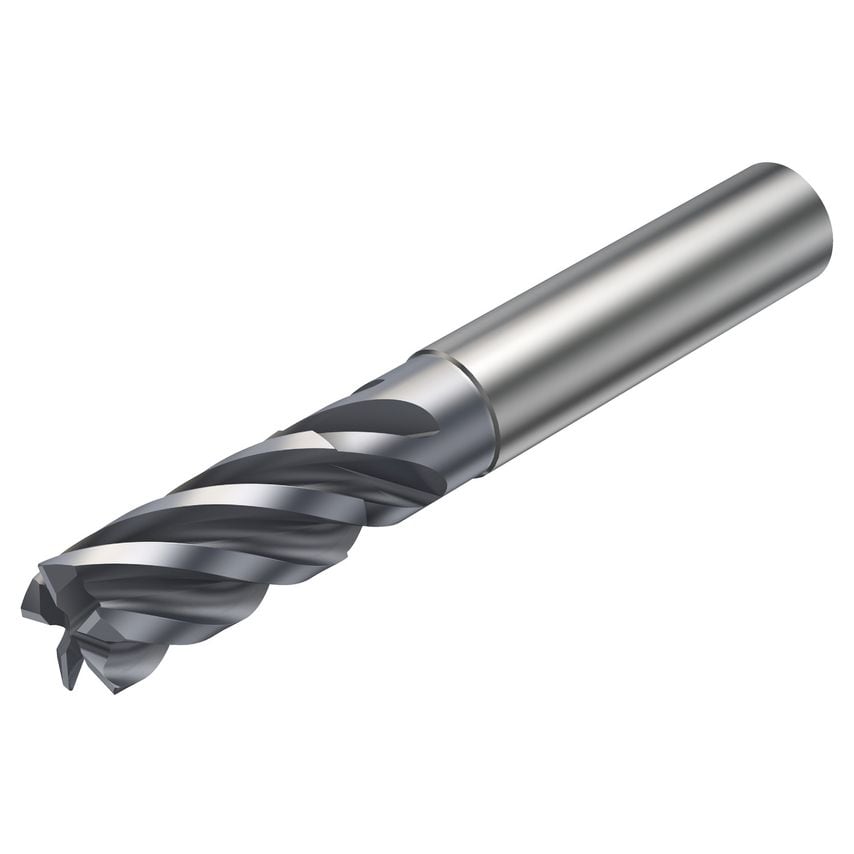

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 88.9mm |
| CoroPak | 15.1 |
| Center Cutting Capability | No |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 25.4mm |
| Basic Standard Group | Coromant |
| Unit Measured | Imperial |
| Standards Met | COROMANT |
| Weight | 0.24kg |
| Through Hole Function Property | Yes |
| Coating Type | AlCrN |
| Maximum Depth of Cut | 33.4mm |
| Cutting Diameter | 15.875mm |
| Grade | 1730 |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 22100 1/min |
| Maximum Ramping Angle | 7\u00b0 |
| Material | Solid Carbide |
| Usable Length | 41.28mm |
| Maximum Cutting Depth | 33.4mm |
| MFR Part No. | 6732603 |
