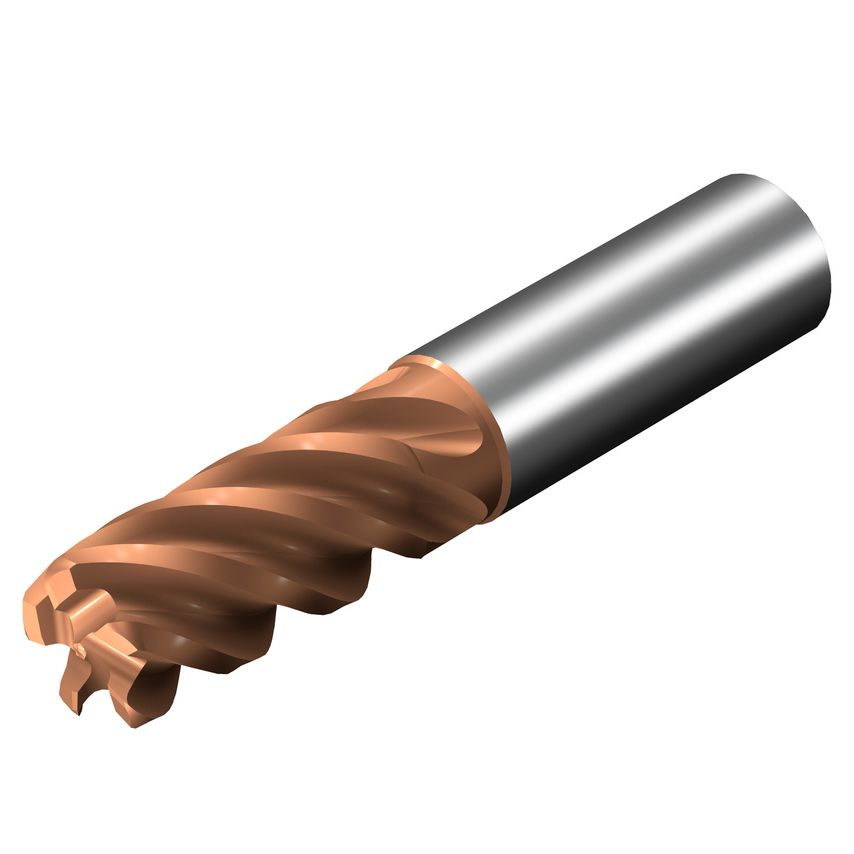

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Corner Radius | 3mm |
| MFR Part No. | 7419265 |
| Maximum Depth of Cut | 42mm |
| Through Hole Function Property | Yes |
| Coating Type | TiAlN+TiSiN |
| Shank Type | Cylindrical |
| Weight | 397.8g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 104mm |
| Cutting Diameter | 20mm |
| Connection Diameter | 20mm |
| Unit Measured | Metric |
| Standards Met | COROMANT |
| Usable Length | 52mm |
| Material | Solid Carbide |
| Rotational Speed Maximum | 13200 1/min |
| Basic Standard Group | Coromant |
| Grade | 1710 |
| CoroPak | 17.2 |
| Maximum Cutting Depth | 42mm |
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | No |
| Product Type | Solid Carbide Endmill |
