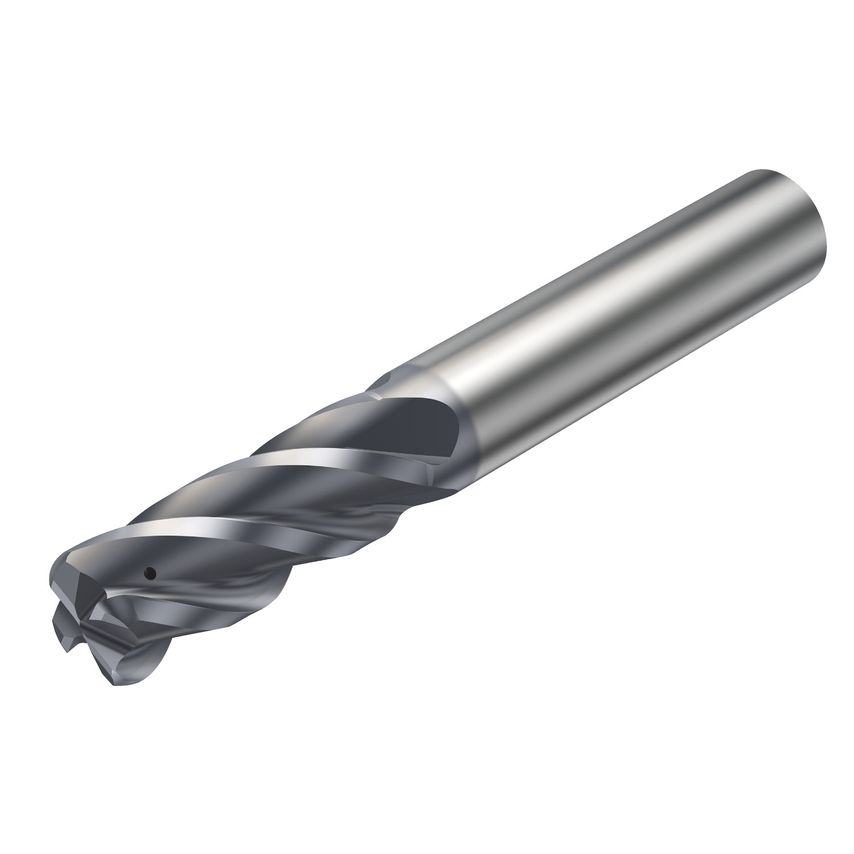

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

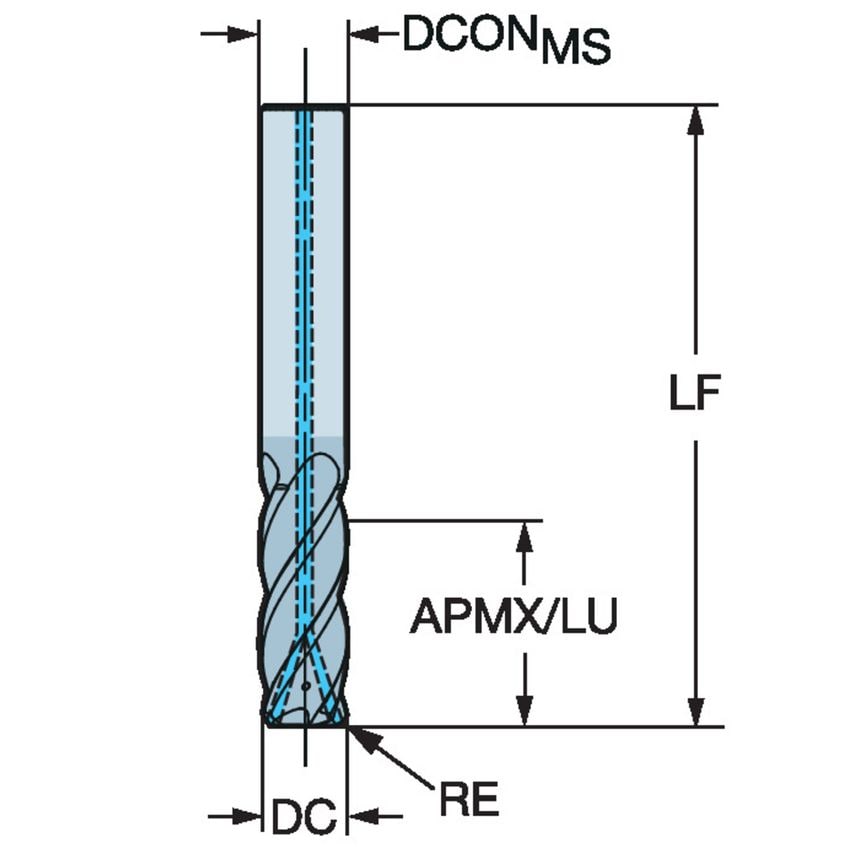

| Material | Solid Carbide |
| Connection Diameter | 19.05mm |
| Corner Radius | 2.286mm |
| Maximum Cutting Depth | 41.27mm |
| Grade | 1740 |
| CoroPak | 15.1 |
| Maximum Depth of Cut | 41.27mm |
| Maximum Ramping Angle | 5\u00b0 |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 15300 1/min |
| MFR Part No. | 6732627 |
| Functional Length | 101.6mm |
| Cutting Diameter | 19.05mm |
| Usable Length | 41.275mm |
| Coolant Entry Style | 1 |
| Weight | 0.34kg |
| Center Cutting Capability | Yes |
| Coating Type | AlTiN |
| Coating Process Type | PVD |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| ISO Cutting Tool Material | Coated WC or Cermet |
