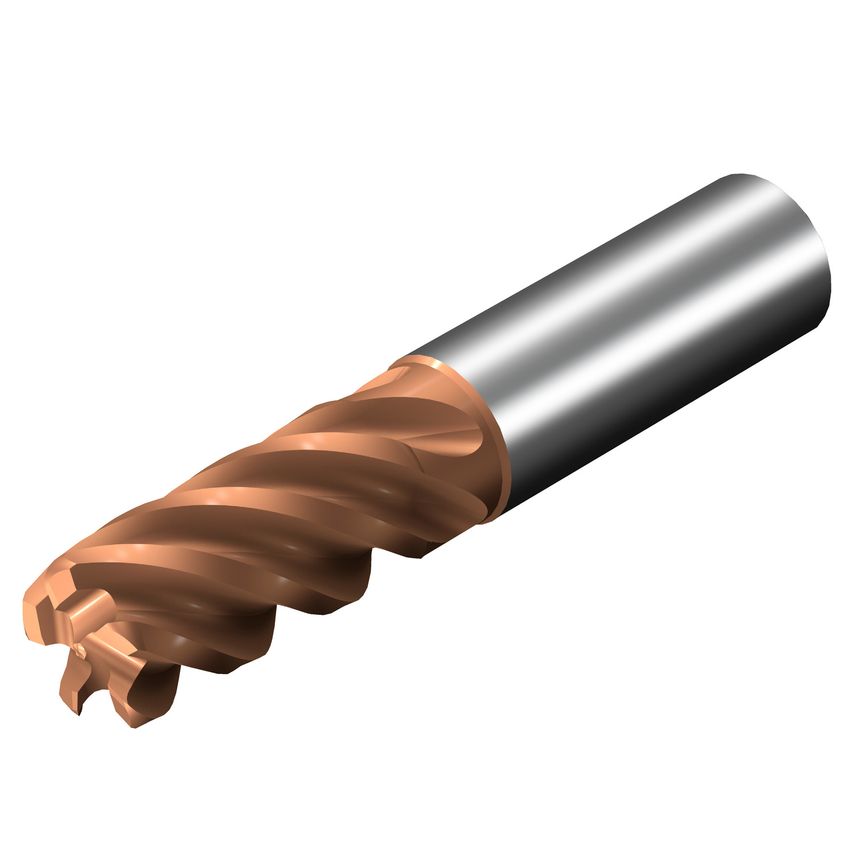

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Corner Radius | 4mm |
| Connection Diameter | 25mm |
| Maximum Depth of Cut | 52mm |
| Grade | 1710 |
| Cutting Diameter | 25mm |
| Weight | 752g |
| Functional Length | 121mm |
| Coating Type | TiAlN+TiSiN |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Usable Length | 63mm |
| Shank Type | Cylindrical |
| Product Type | Solid Carbide Endmill |
| Maximum Cutting Depth | 52mm |
| CoroPak | 17.2 |
| Basic Standard Group | Coromant |
| MFR Part No. | 7419268 |
| Rotational Speed Maximum | 8200 1/min |
| Through Hole Function Property | Yes |
| Center Cutting Capability | No |
