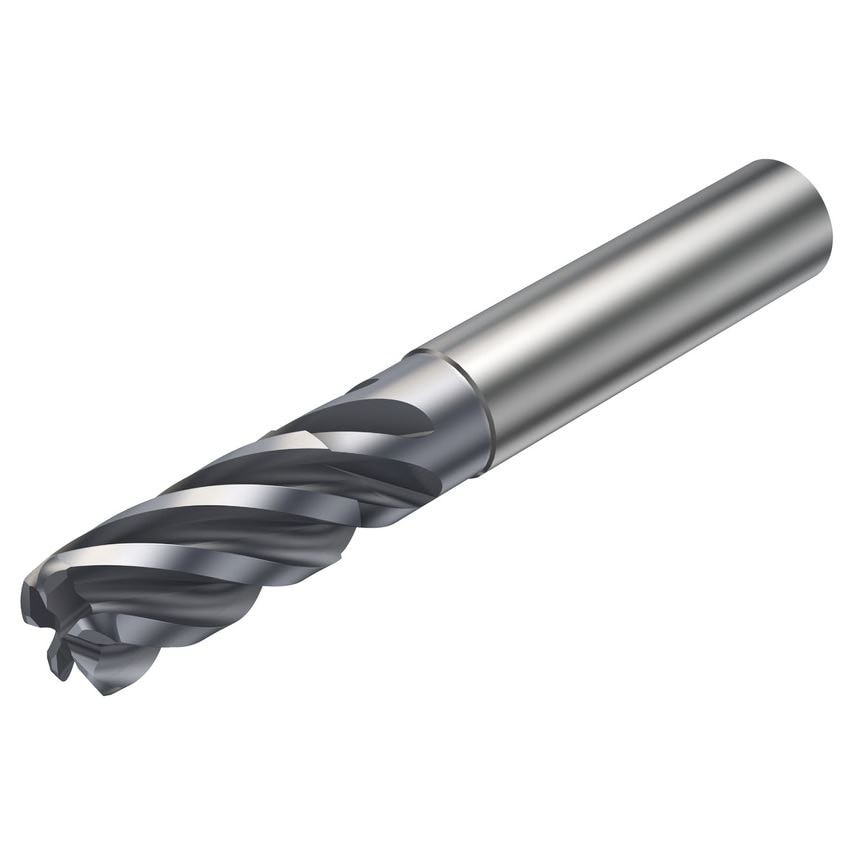

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | No |
| Unit Measured | Imperial |
| Grade | 1730 |
| Standards Met | COROMANT |
| Usable Length | 49.212mm |
| Rotational Speed Maximum | 13500 1/min |
| Cutting Diameter | 19.05mm |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 41.3mm |
| Basic Standard Group | Coromant |
| Weight | 397.8g |
| MFR Part No. | 6732624 |
| Maximum Ramping Angle | 7\u00b0 |
| Connection Diameter | 2.8mm |
| Functional Length | 101.6mm |
| CoroPak | 15.1 |
| Coating Type | AlCrN |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 1.524mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 41.3mm |
| Material | Solid Carbide |
| Coating Process Type | PVD |
