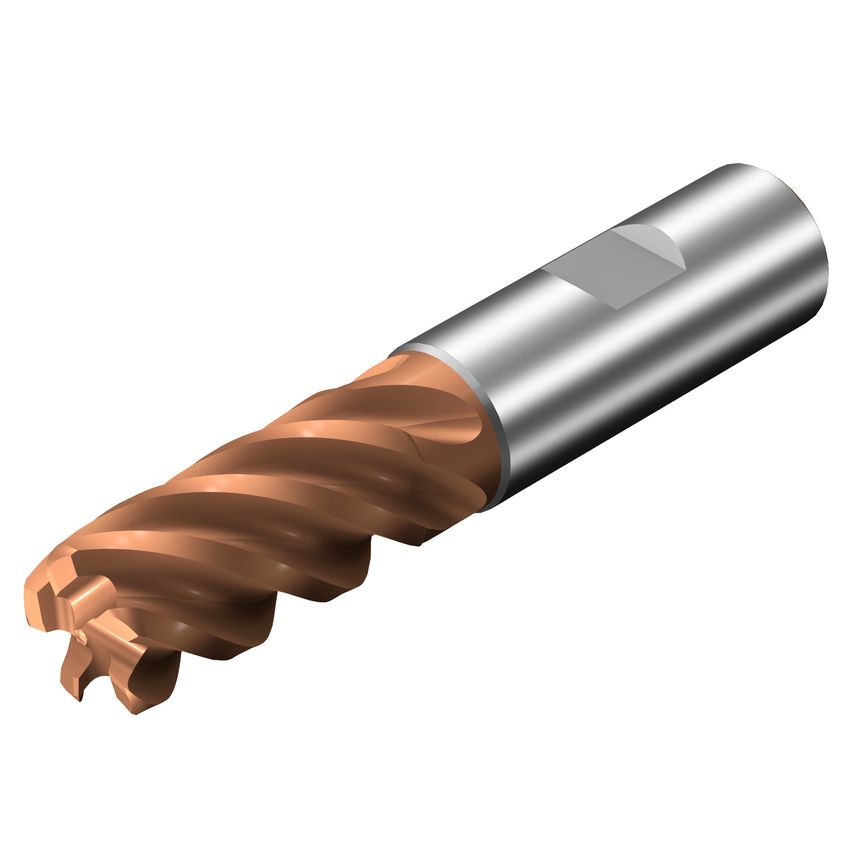

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| CoroPak | 17.2 |
| Through Hole Function Property | Yes |
| Basic Standard Group | Coromant |
| Corner Radius | 4mm |
| Standards Met | COROMANT |
| Shank Type | Weldon |
| Usable Length | 42mm |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Grade | 1710 |
| Maximum Depth of Cut | 34mm |
| Maximum Cutting Depth | 34mm |
| Functional Length | 92mm |
| Center Cutting Capability | No |
| Coating Type | TiAlN+TiSiN |
| Cutting Diameter | 16mm |
| Connection Diameter | 60mm |
| Material | Solid Carbide |
| Rotational Speed Maximum | 22800 1/min |
| Coolant Entry Style | Without Coolant |
| Weight | 237g |
| Unit Measured | Metric |
| MFR Part No. | 7419271 |
