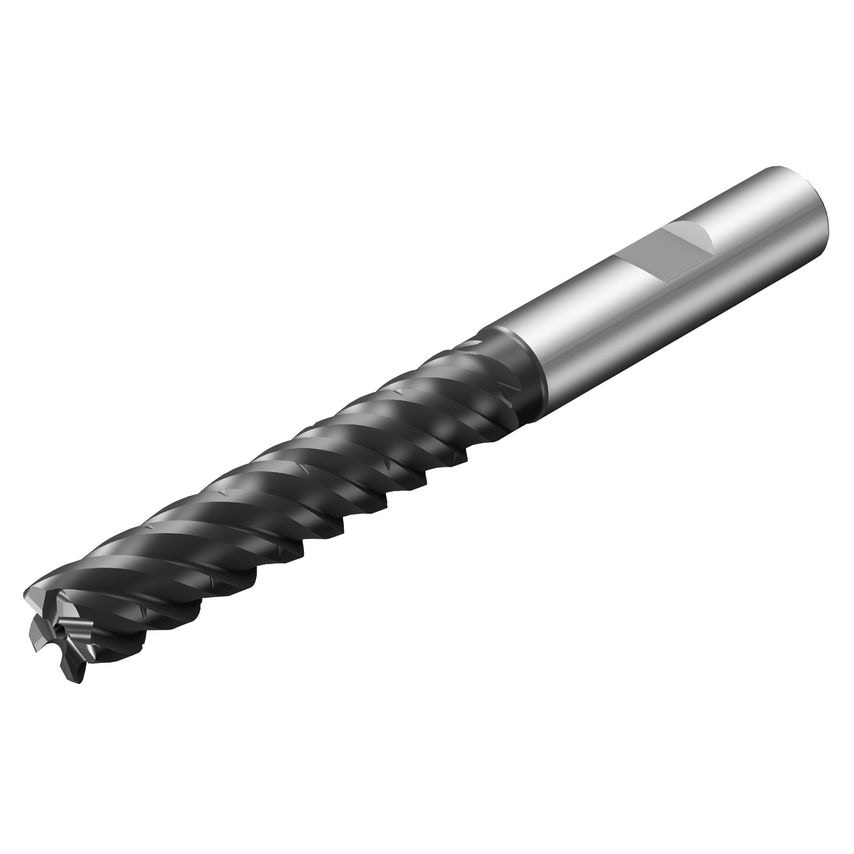

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Shank Type | Weldon |
| Corner Radius | 3.048mm |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 25.4mm |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 127.79mm |
| Center Cutting Capability | No |
| Functional Length | 206.375mm |
| Coating Type | TiAlSiN |
| Coolant Entry Style | 1 |
| Connection Diameter | 16mm |
| Rotational Speed Maximum | 40000 1/min |
| Grade | 1745 |
| CoroPak | 20.2 |
| MFR Part No. | 7963657 |
| Product Type | Solid Carbide Endmill |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Material | Solid Carbide |
| Weight | 1.22kg |
| Standards Met | COROMANT |
| Usable Length | 140.494mm |
| Maximum Ramping Angle | 2\u00b0 |
| Maximum Depth of Cut | 127.79mm |
