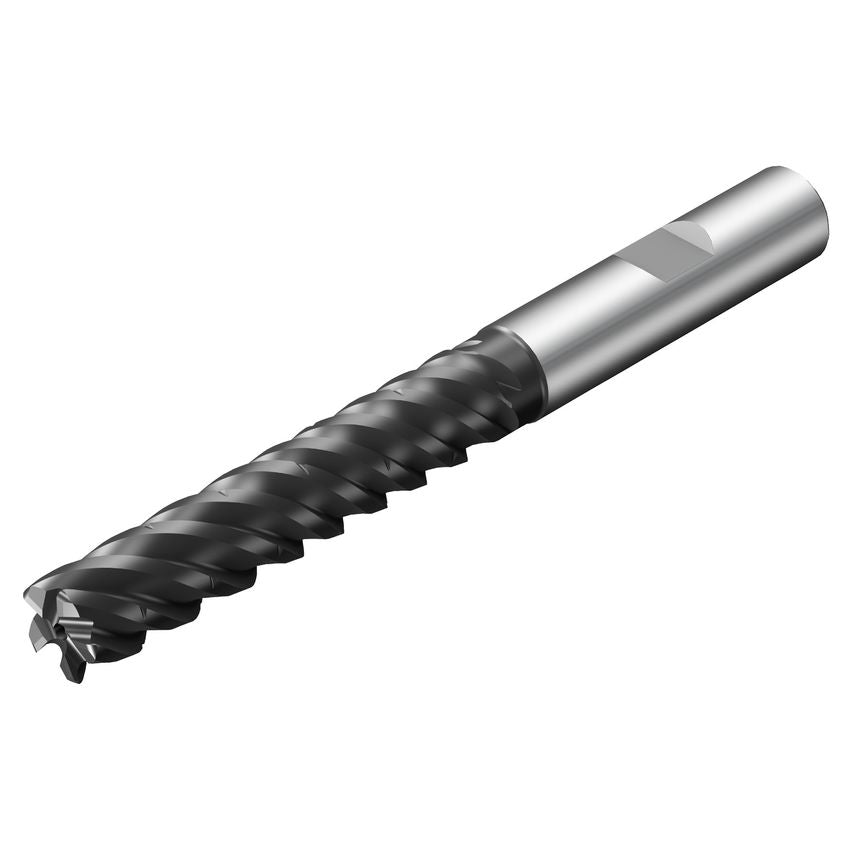

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Cutting Diameter | 25.4mm |
| Weight | 1.22kg |
| Material | Solid Carbide |
| MFR Part No. | 7963655 |
| Coating Type | TiAlSiN |
| Rotational Speed Maximum | 40000 1/min |
| Maximum Ramping Angle | 2\u00b0 |
| Functional Length | 206.375mm |
| Center Cutting Capability | No |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Maximum Depth of Cut | 127.79mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 127.79mm |
| Connection Diameter | 16mm |
| Corner Radius | 1.524mm |
| Shank Type | Weldon |
| Unit Measured | Imperial |
| Product Type | Solid Carbide Endmill |
| Coolant Entry Style | 1 |
| Usable Length | 140.494mm |
| CoroPak | 20.2 |
| Through Hole Function Property | Yes |
| Grade | 1745 |
