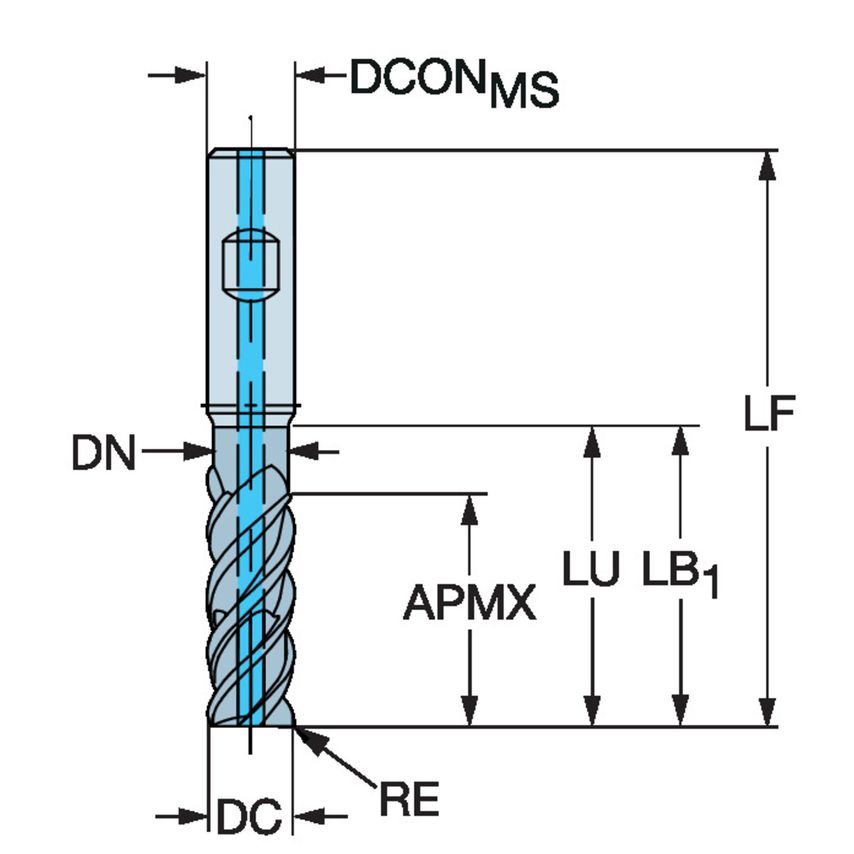

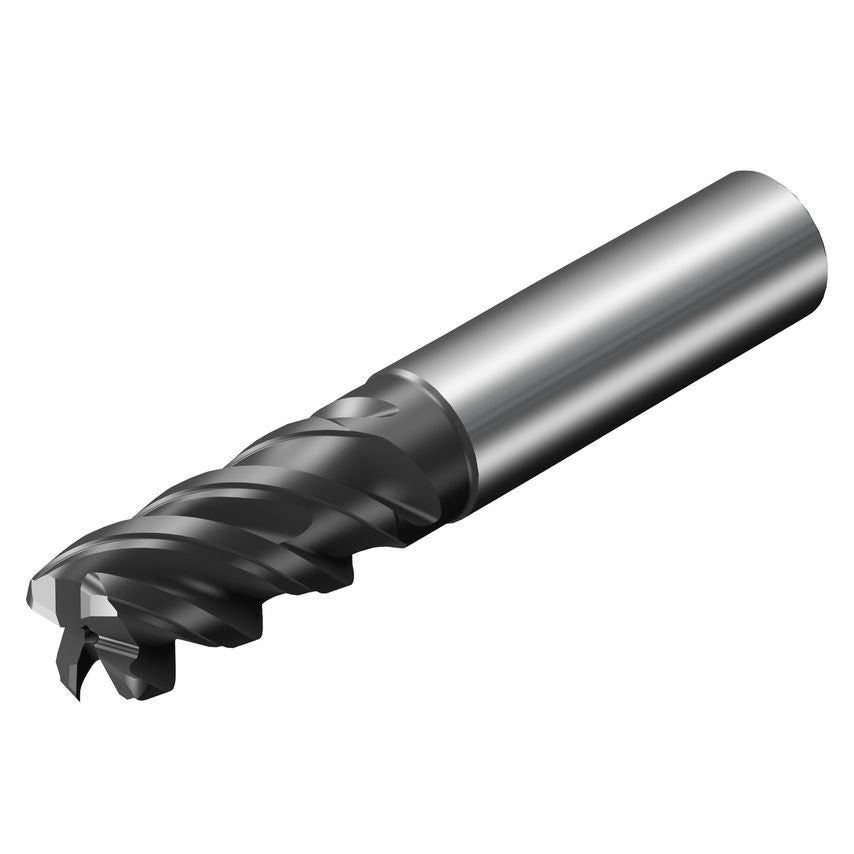

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | No |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| CoroPak | 20.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Functional Length | 72mm |
| Coating Type | TiAlN |
| Maximum Cutting Depth | 22mm |
| MFR Part No. | 7858276 |
| Standards Met | DIN 6527 L |
| Connection Diameter | 10mm |
| Usable Length | 30mm |
| Maximum Depth of Cut | 22mm |
| Shank Type | Weldon |
| Basic Standard Group | DIN 6527 L |
| Product Type | Solid Carbide Endmill |
| Rotational Speed Maximum | 40000 1/min |
| Coolant Entry Style | 1 |
| Corner Radius | 1mm |
| Cutting Diameter | 10mm |
| Unit Measured | Metric |
| Grade | 1725 |
