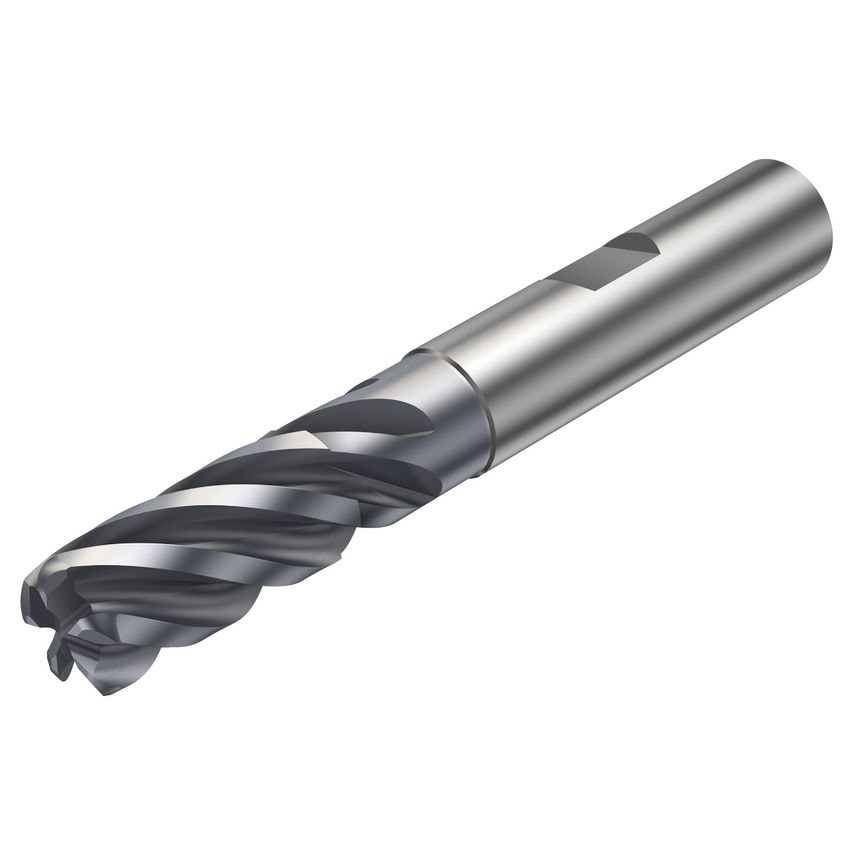

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 34mm |
| Usable Length | 42mm |
| Corner Radius | 0.5mm |
| Connection Diameter | 63mm |
| Coating Type | AlCrN |
| Basic Standard Group | Coromant |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Rotational Speed Maximum | 20200 1/min |
| Center Cutting Capability | No |
| Functional Length | 92mm |
| CoroPak | 20.1 |
| Maximum Ramping Angle | 7\u00b0 |
| Unit Measured | Metric |
| Weight | 0.2kg |
| Cutting Diameter | 16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 34mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 7716316 |
| Grade | 1730 |
| Standards Met | COROMANT |
