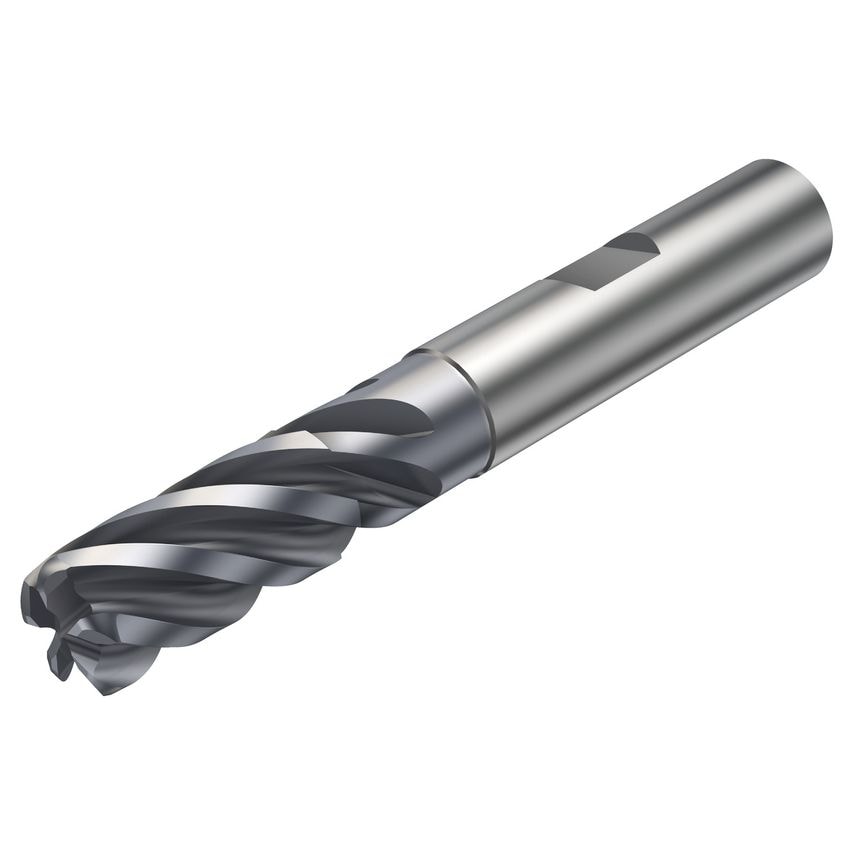

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 13500 1/min |
| Coating Process Type | PVD |
| Corner Radius | 0.762mm |
| Unit Measured | Metric |
| Connection Diameter | 3.5mm |
| Maximum Cutting Depth | 41.3mm |
| Weight | 0.36kg |
| Center Cutting Capability | No |
| Grade | 1730 |
| Maximum Depth of Cut | 41.3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 7\u00b0 |
| Coolant Entry Style | Without Coolant |
| Coating Type | AlCrN |
| Material | Solid Carbide |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| CoroPak | 20.1 |
| Basic Standard Group | Coromant |
| MFR Part No. | 7716319 |
| Usable Length | 49.212mm |
| Cutting Diameter | 19.05mm |
| Functional Length | 101.6mm |
