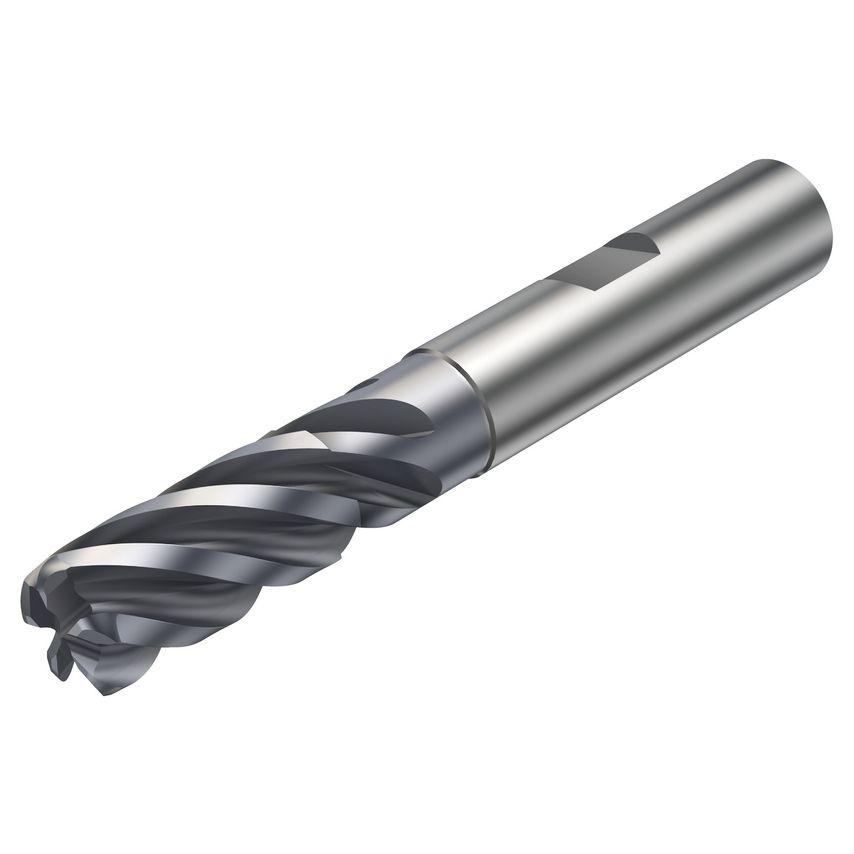

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 7716324 |
| Center Cutting Capability | No |
| Cutting Diameter | 12mm |
| Maximum Depth of Cut | 26mm |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| CoroPak | 20.1 |
| Coolant Entry Style | Without Coolant |
| Weight | 0.12kg |
| Usable Length | 36mm |
| Maximum Cutting Depth | 26mm |
| Connection Diameter | 12mm |
| Standards Met | COROMANT |
| Functional Length | 83mm |
| Grade | 1730 |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 38500 1/min |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Coating Type | AlCrN |
| Maximum Ramping Angle | 7\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
