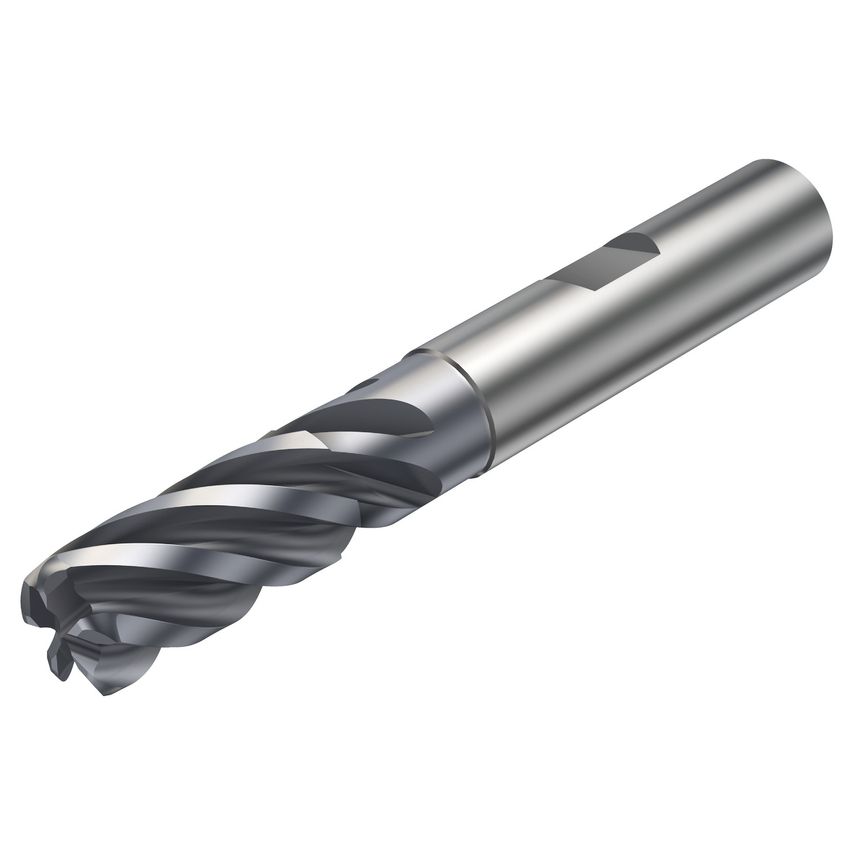

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1730 |
| Coating Process Type | PVD |
| CoroPak | 20.1 |
| Maximum Cutting Depth | 42mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 52mm |
| Cutting Diameter | 20mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Connection Diameter | 3mm |
| Weight | 0.41kg |
| Center Cutting Capability | No |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Functional Length | 104mm |
| Maximum Ramping Angle | 7\u00b0 |
| Material | Solid Carbide |
| MFR Part No. | 7716322 |
| Corner Radius | 2mm |
| Rotational Speed Maximum | 11700 1/min |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 42mm |
| Unit Measured | Metric |
