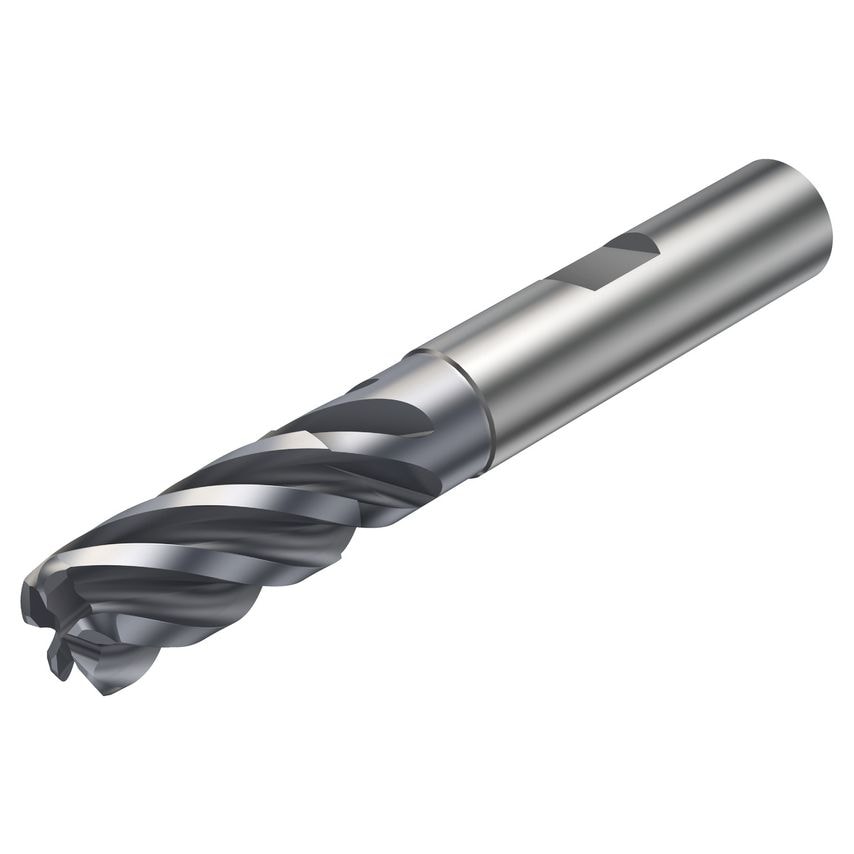

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 41.3mm |
| Rotational Speed Maximum | 13500 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Basic Standard Group | Coromant |
| Functional Length | 101.6mm |
| Connection Diameter | 3.5mm |
| MFR Part No. | 7716327 |
| Center Cutting Capability | No |
| Coating Type | AlCrN |
| Coolant Entry Style | Without Coolant |
| Usable Length | 49.212mm |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 41.3mm |
| CoroPak | 20.1 |
| Grade | 1730 |
| Weight | 0.36kg |
| Maximum Ramping Angle | 7\u00b0 |
| Cutting Diameter | 19.05mm |
