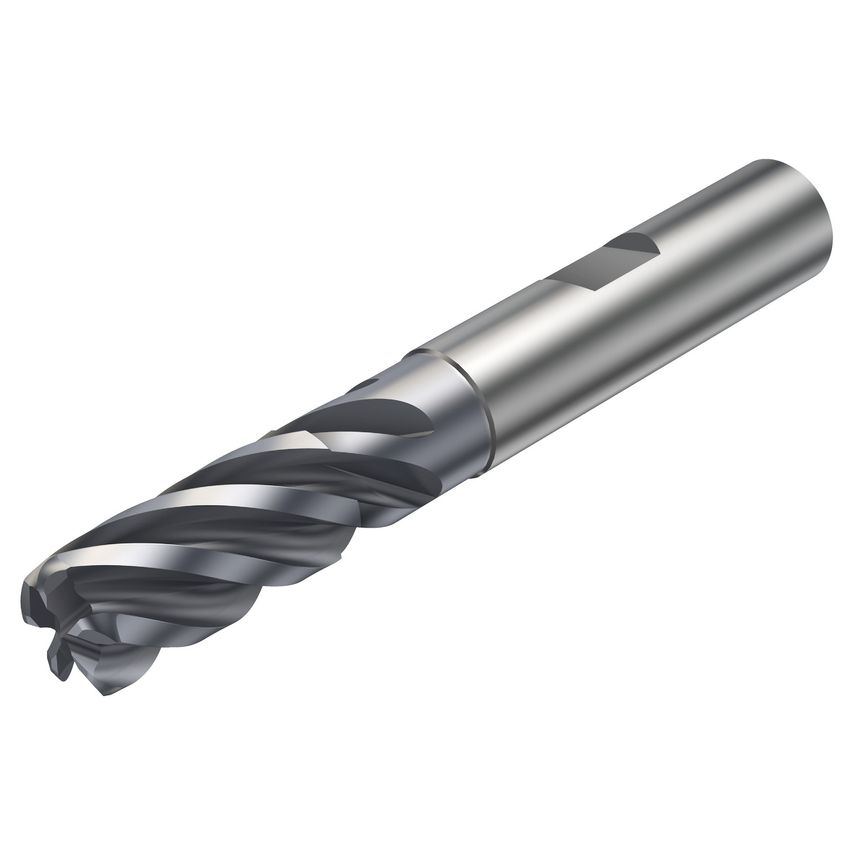

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 11700 1/min |
| Grade | 1730 |
| Corner Radius | 1mm |
| Maximum Ramping Angle | 7\u00b0 |
| Standards Met | COROMANT |
| Center Cutting Capability | No |
| Unit Measured | Metric |
| Material | Solid Carbide |
| Maximum Cutting Depth | 42mm |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 42mm |
| Weight | 0.41kg |
| MFR Part No. | 7716321 |
| Basic Standard Group | Coromant |
| Functional Length | 104mm |
| Usable Length | 52mm |
| Connection Diameter | 20mm |
| Cutting Diameter | 20mm |
| CoroPak | 20.1 |
| Coating Type | AlCrN |
