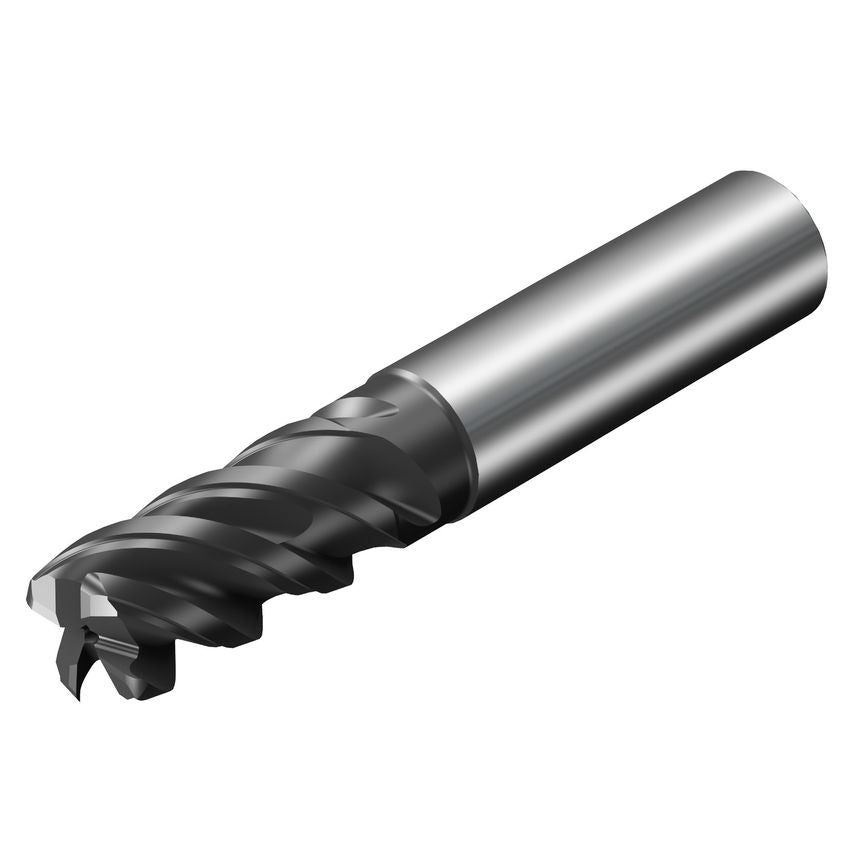

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Connection Diameter | 9.525mm |
| Usable Length | 29.37mm |
| Corner Radius | 2.286mm |
| MFR Part No. | 7858311 |
| Shank Type | Weldon |
| Grade | 1725 |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Product Type | Solid Carbide Endmill |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | No |
| Unit Measured | Imperial |
| Coolant Entry Style | 1 |
| Cutting Diameter | 9.525mm |
| Maximum Depth of Cut | 19.84mm |
| Coating Type | TiAlN |
| Rotational Speed Maximum | 40000 1/min |
| Maximum Cutting Depth | 19.84mm |
| CoroPak | 20.2 |
| Standards Met | COROMANT |
| Functional Length | 76.2mm |
| Basic Standard Group | Coromant |
