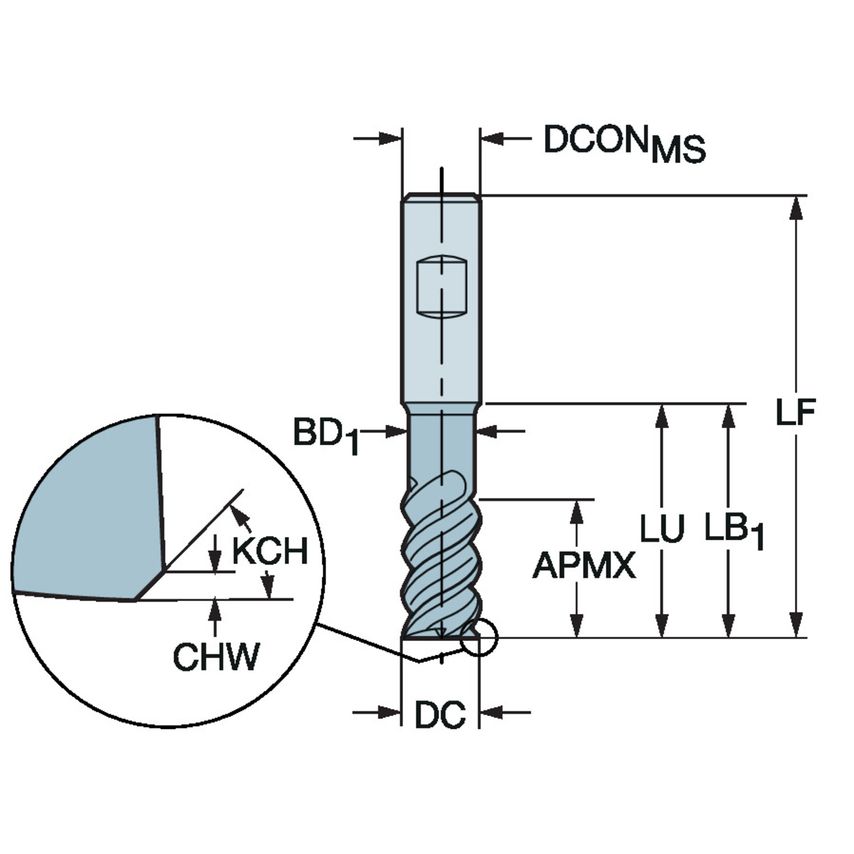

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Standards Met | COROMANT |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 25.4mm |
| Unit Measured | Metric |
| Basic Standard Group | Coromant |
| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| Functional Length | 88.9mm |
| Maximum Cutting Depth | 33.34mm |
| CoroPak | 20.1 |
| Maximum Ramping Angle | 7\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.22kg |
| Cutting Diameter | 15.875mm |
| MFR Part No. | 7716334 |
| Center Cutting Capability | Yes |
| Grade | 1730 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 33.34mm |
| Rotational Speed Maximum | 23300 1/min |
| Usable Length | 33.338mm |
| Coating Process Type | PVD |
