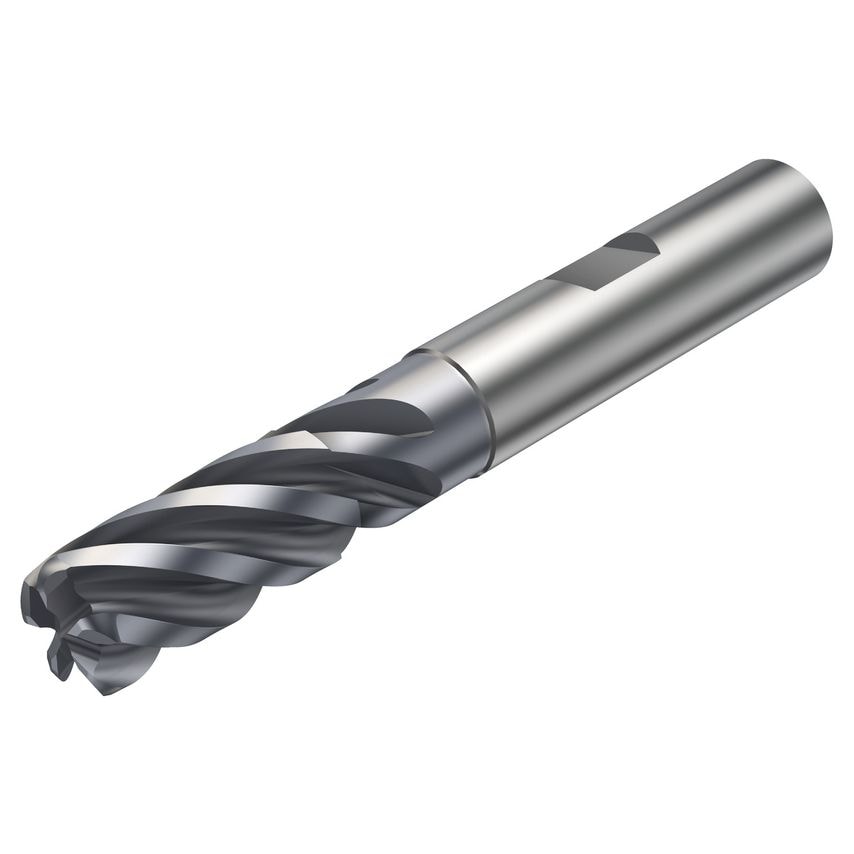

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 42mm |
| Coating Process Type | PVD |
| Coating Type | AlCrN |
| Cutting Diameter | 20mm |
| Connection Diameter | 3mm |
| CoroPak | 20.1 |
| Rotational Speed Maximum | 11700 1/min |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| Center Cutting Capability | No |
| Basic Standard Group | Coromant |
| Maximum Ramping Angle | 7\u00b0 |
| Usable Length | 52mm |
| MFR Part No. | 7716328 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 104mm |
| Standards Met | COROMANT |
| Weight | 0.41kg |
| Maximum Depth of Cut | 42mm |
| Unit Measured | Metric |
| Grade | 1730 |
