Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

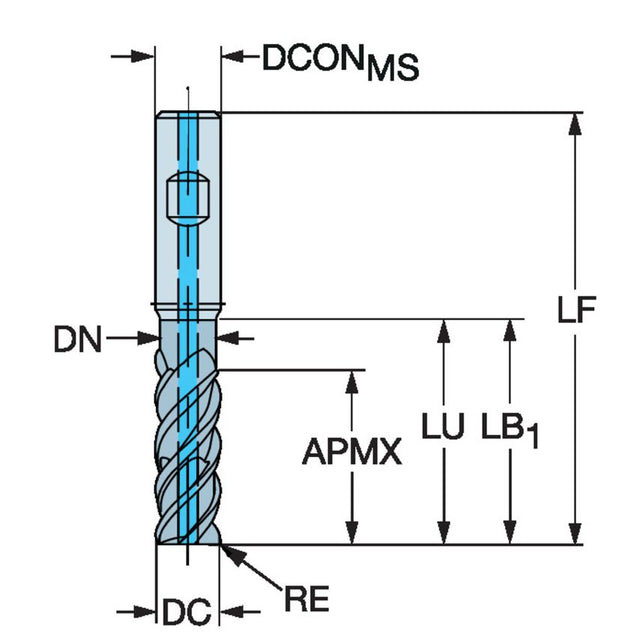

| Functional Length | 88.9mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 28.57mm |
| Weight | 0.14kg |
| Center Cutting Capability | No |
| Standards Met | COROMANT |
| Grade | 1725 |
| Shank Type | Weldon |
| Maximum Cutting Depth | 28.57mm |
| Basic Standard Group | Coromant |
| Connection Diameter | 11mm |
| Corner Radius | 1.524mm |
| CoroPak | 20.2 |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Product Type | Solid Carbide Endmill |
| Cutting Diameter | 12.7mm |
| Rotational Speed Maximum | 40000 1/min |
| Coating Process Type | PVD |
| Coolant Entry Style | 1 |
| Material | Solid Carbide |
| MFR Part No. | 7858313 |
| Unit Measured | Imperial |
| Usable Length | 36.513mm |
| Maximum Ramping Angle | 5\u00b0 |
