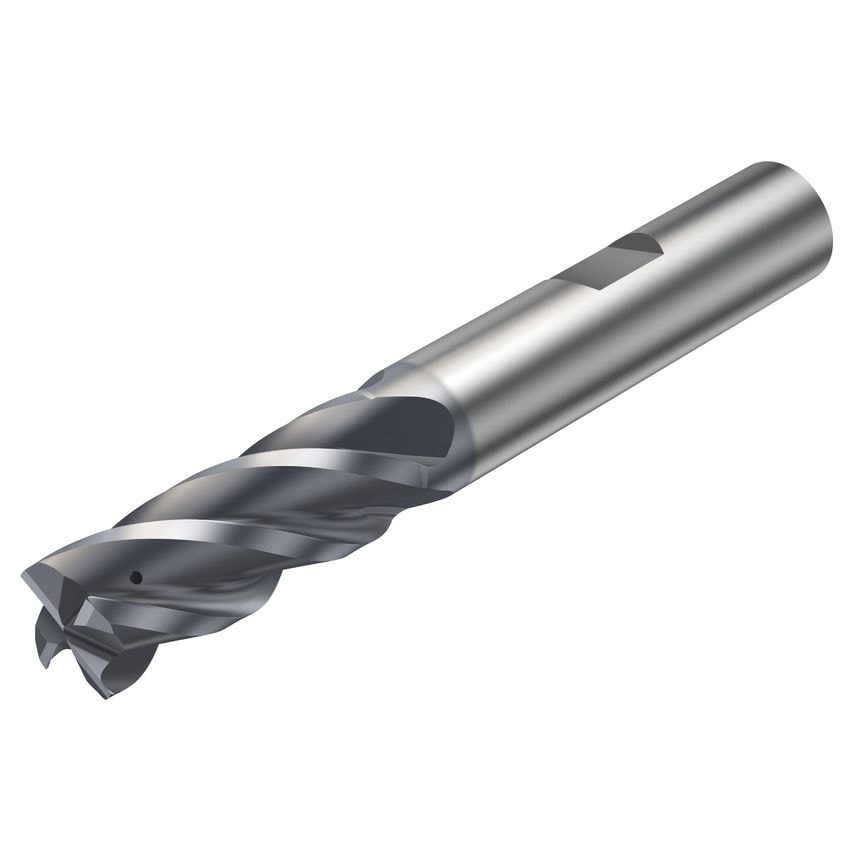

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

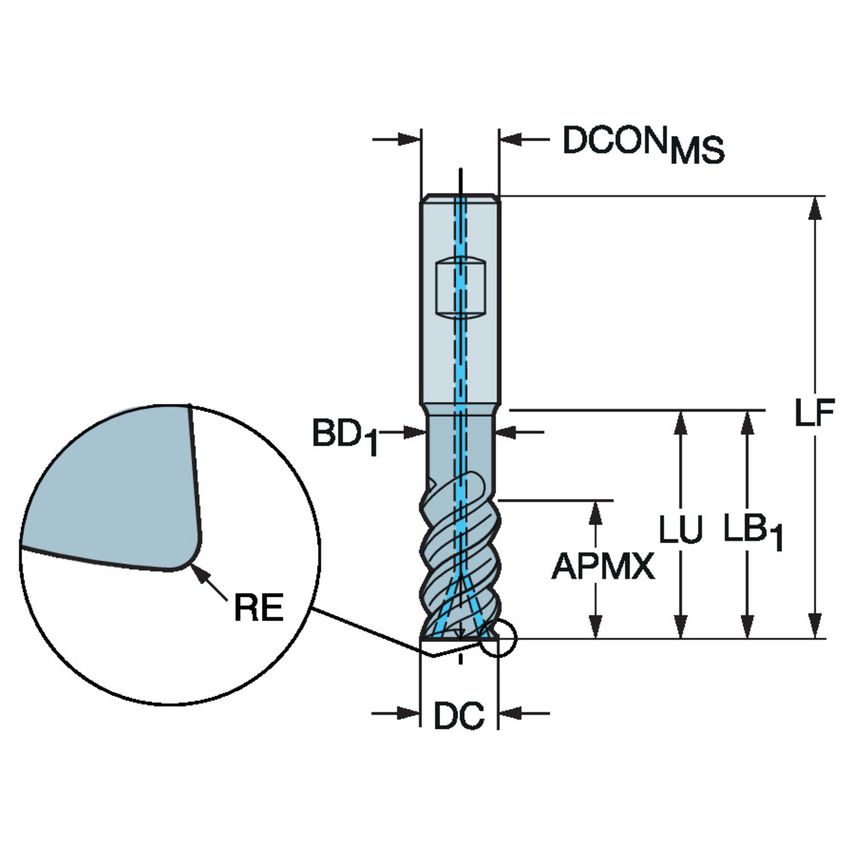

| MFR Part No. | 7716347 |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 22mm |
| Standards Met | COROMANT |
| Usable Length | 22mm |
| Corner Radius | 2mm |
| Basic Standard Group | Coromant |
| Functional Length | 72mm |
| Coating Type | AlTiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 22mm |
| Grade | 1740 |
| Coating Process Type | PVD |
| CoroPak | 20.1 |
| Coolant Entry Style | Without Coolant |
| Material | Carbide |
| Rotational Speed Maximum | 72600 1/min |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 27mm |
| Unit Measured | Metric |
| Cutting Diameter | 10mm |
