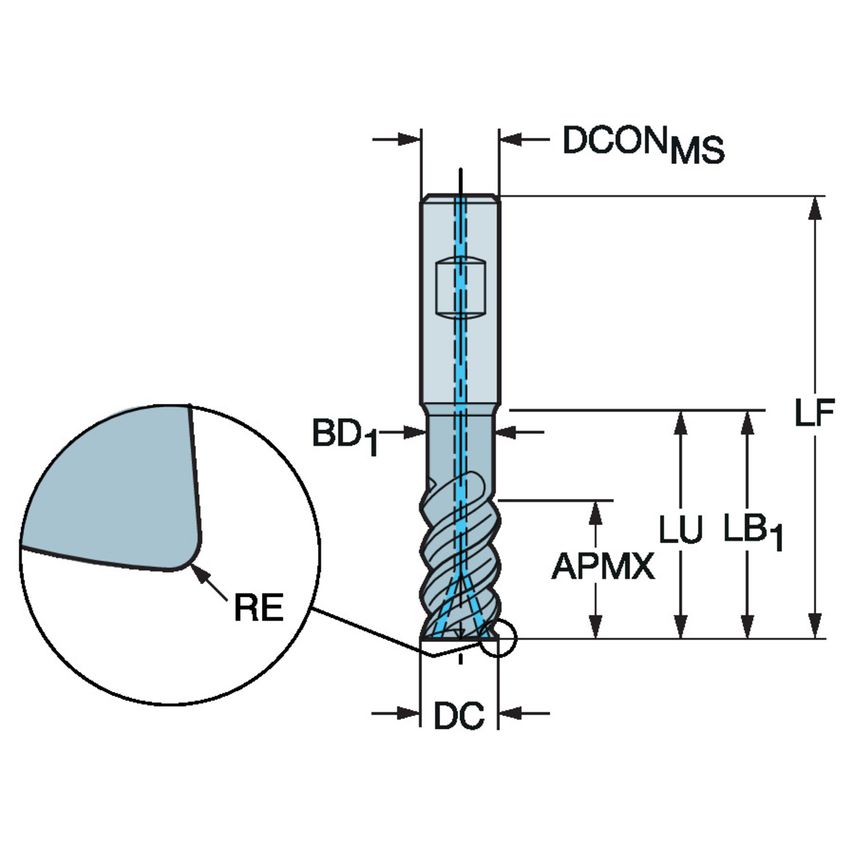

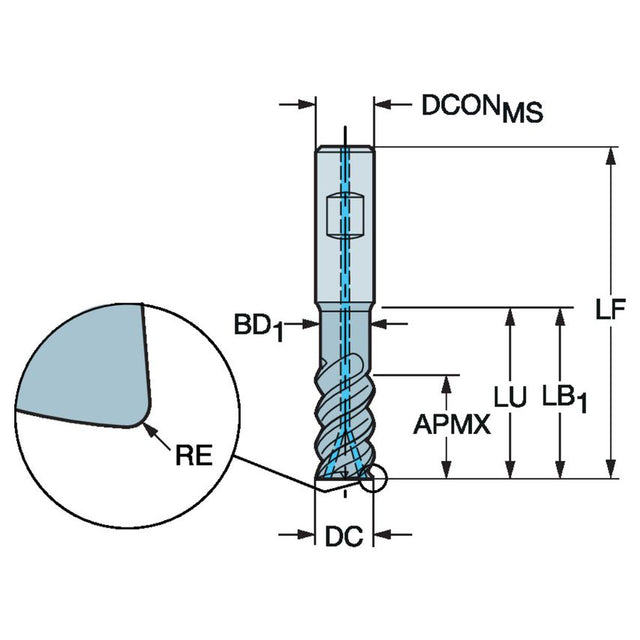

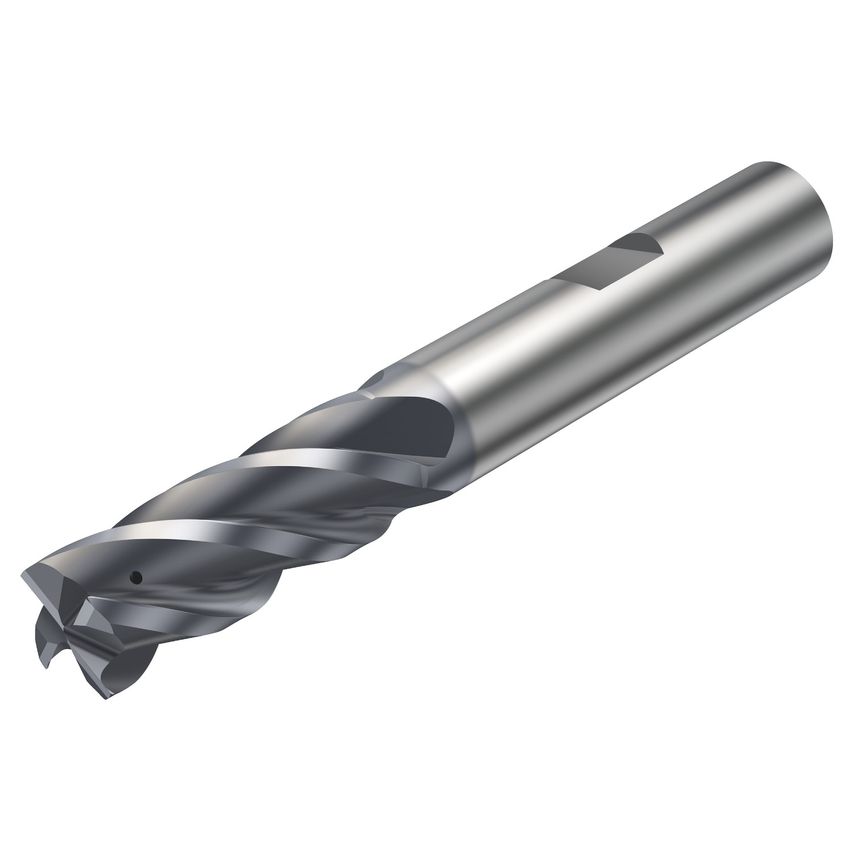

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Rotational Speed Maximum | 72600 1/min |
| Standards Met | COROMANT |
| Basic Standard Group | Coromant |
| MFR Part No. | 7716346 |
| Cutting Diameter | 10mm |
| Coating Process Type | PVD |
| Connection Diameter | 10mm |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 22mm |
| Material | Solid Carbide |
| Grade | 1740 |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 22mm |
| Corner Radius | 1.5mm |
| CoroPak | 20.1 |
| Functional Length | 72mm |
| Maximum Ramping Angle | 5\u00b0 |
| Usable Length | 22mm |
| Coating Type | AlTiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
