Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

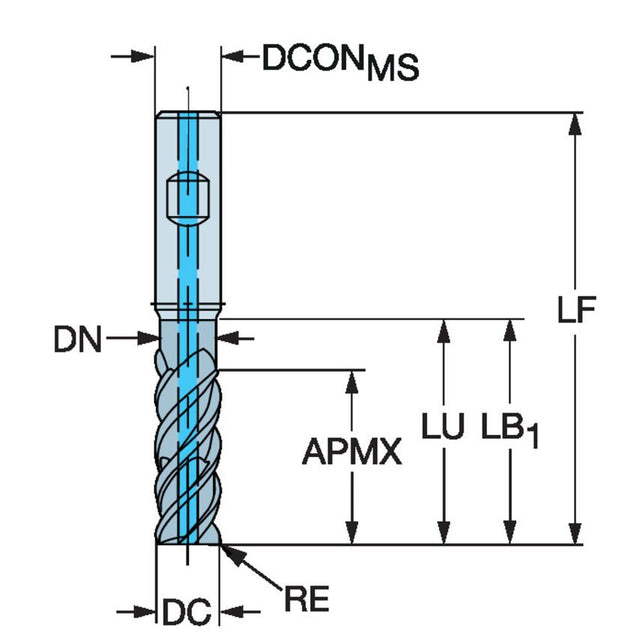

| Cutting Diameter | 19.05mm |
| Basic Standard Group | Coromant |
| CoroPak | 20.2 |
| Functional Length | 107.95mm |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 41.27mm |
| Maximum Cutting Depth | 41.27mm |
| Center Cutting Capability | No |
| Corner Radius | 0.762mm |
| Coolant Entry Style | 1 |
| Maximum Ramping Angle | 5\u00b0 |
| Rotational Speed Maximum | 40000 1/min |
| Shank Type | Weldon |
| Product Type | Solid Carbide Endmill |
| Usable Length | 49.212mm |
| Grade | 1725 |
| Through Hole Function Property | Yes |
| Standards Met | COROMANT |
| Connection Diameter | 3.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.37kg |
| Unit Measured | Imperial |
| Material | Solid Carbide |
| MFR Part No. | 7858320 |
