Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

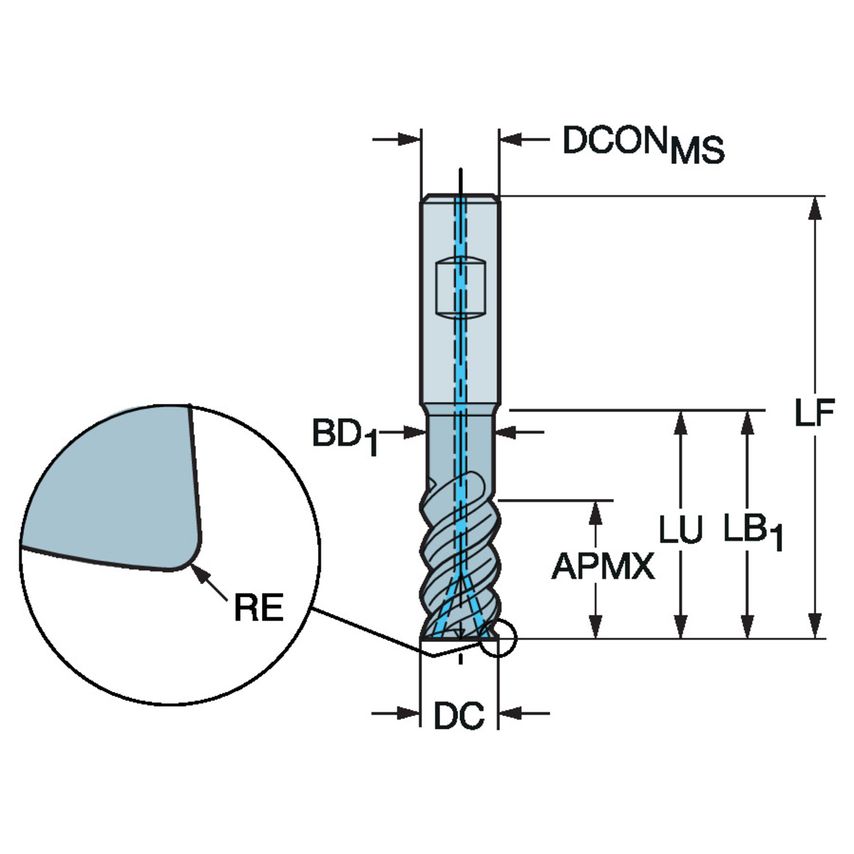

| Corner Radius | 3mm |
| Cutting Diameter | 10mm |
| Center Cutting Capability | Yes |
| Functional Length | 72mm |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| Usable Length | 22mm |
| Coolant Entry Style | Without Coolant |
| CoroPak | 20.1 |
| Connection Diameter | 27mm |
| Unit Measured | Metric |
| Grade | 1740 |
| MFR Part No. | 7716349 |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlTiN |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 22mm |
| Rotational Speed Maximum | 72600 1/min |
| Maximum Depth of Cut | 22mm |
