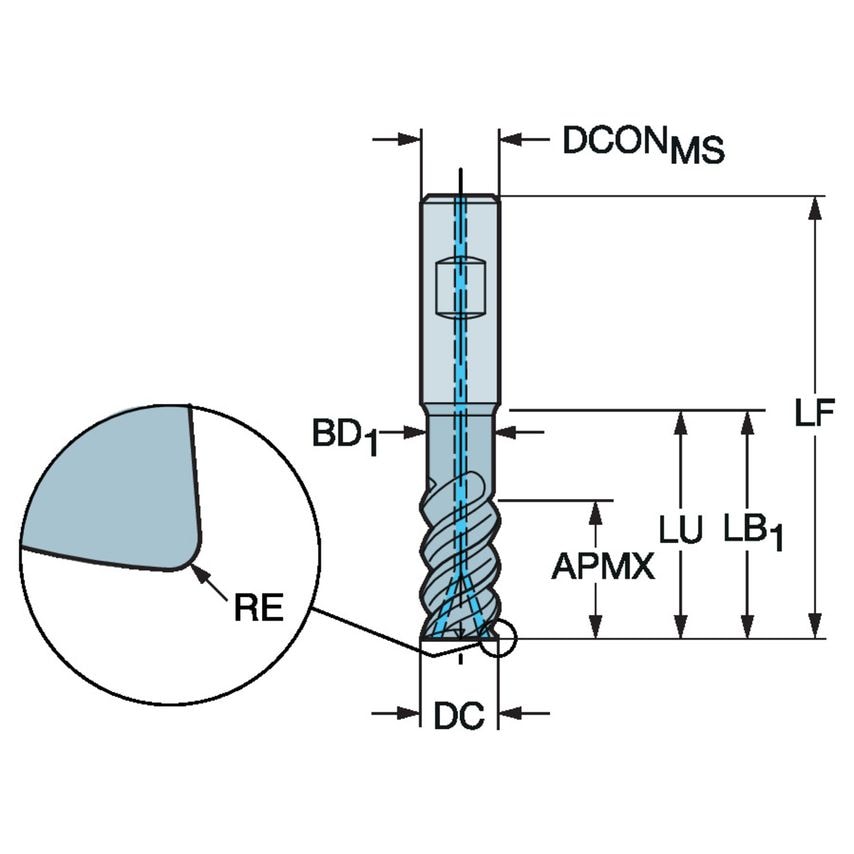

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Connection Diameter | 15.875mm |
| Maximum Ramping Angle | 5\u00b0 |
| Usable Length | 33.338mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 33.34mm |
| MFR Part No. | 7716358 |
| Basic Standard Group | Coromant |
| Material | Carbide |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 0.762mm |
| Weight | 0.22kg |
| Maximum Cutting Depth | 33.34mm |
| Coating Type | AlTiN |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 25100 1/min |
| CoroPak | 20.1 |
| Cutting Diameter | 15.875mm |
| Grade | 1740 |
| Functional Length | 96mm |
