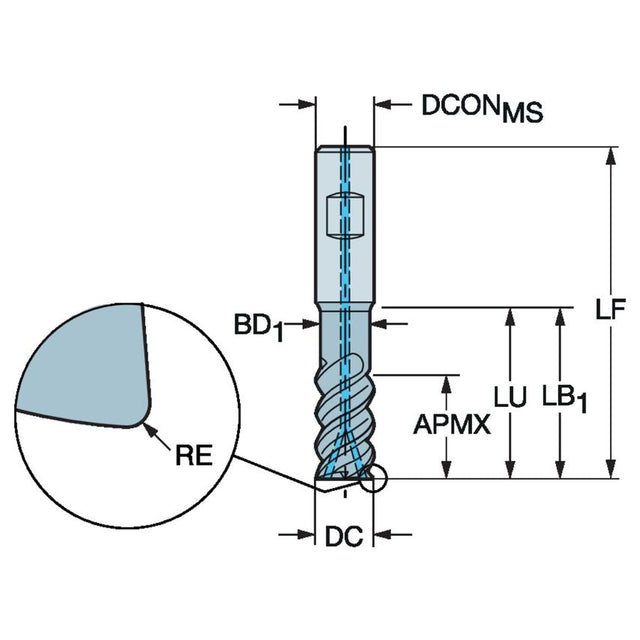

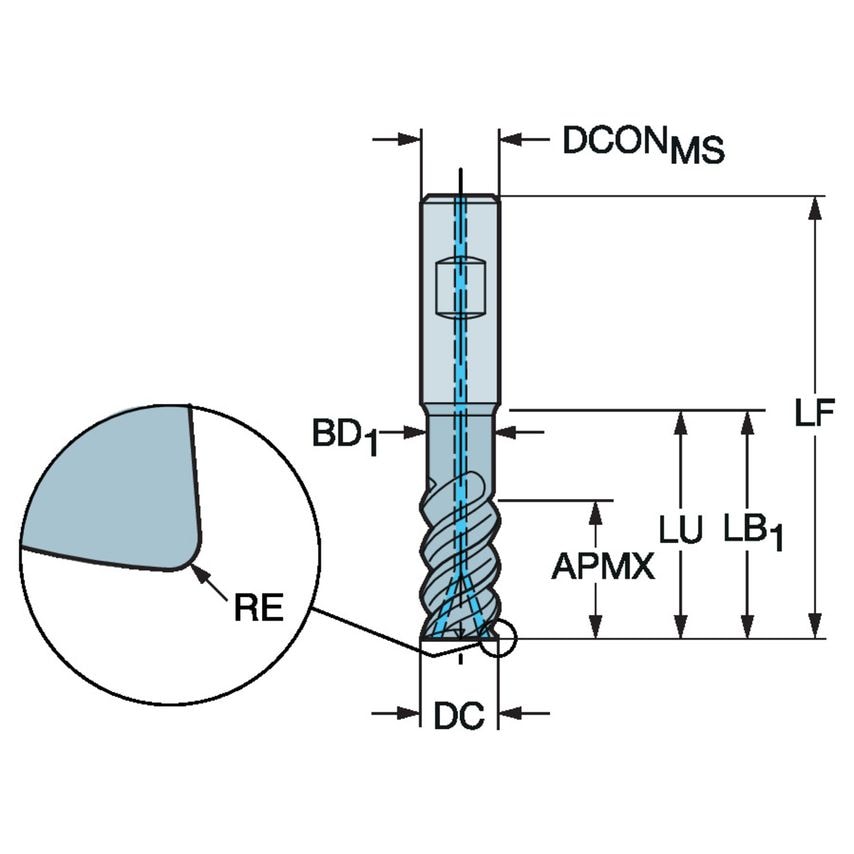

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1740 |
| Functional Length | 83mm |
| Coating Process Type | PVD |
| MFR Part No. | 7716357 |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 26mm |
| Material | Solid Carbide |
| Cutting Diameter | 12mm |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Weight | 0.11kg |
| Center Cutting Capability | Yes |
| Maximum Depth of Cut | 26mm |
| Corner Radius | 3mm |
| Rotational Speed Maximum | 43800 1/min |
| Usable Length | 26mm |
| Coating Type | AlTiN |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| CoroPak | 20.1 |
| Connection Diameter | 12mm |
| Standards Met | COROMANT |
