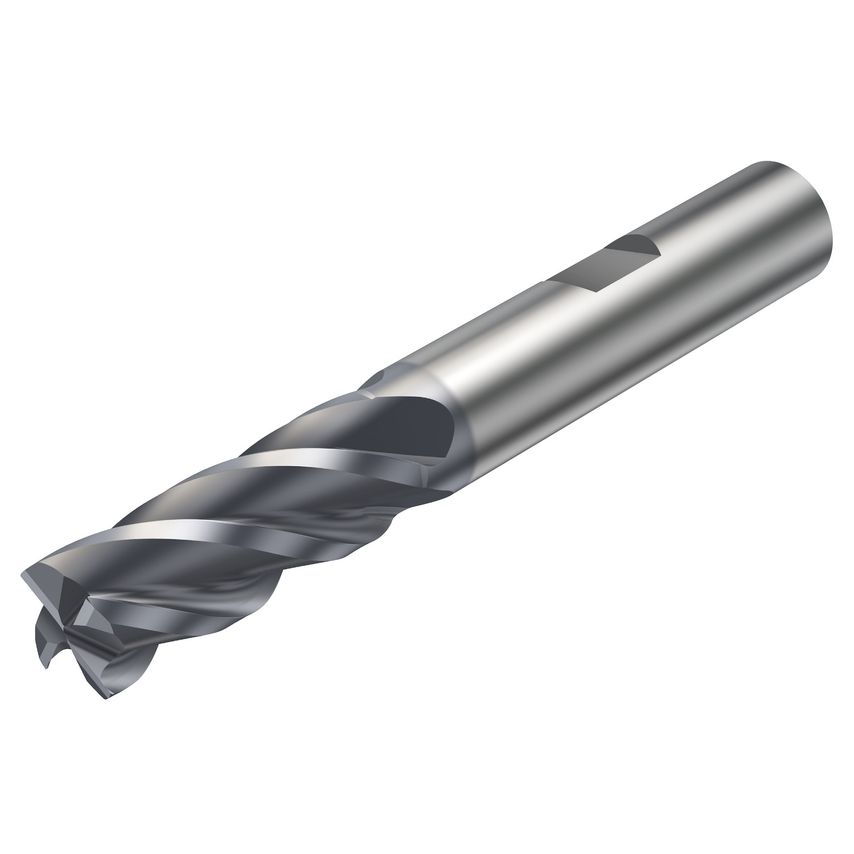

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

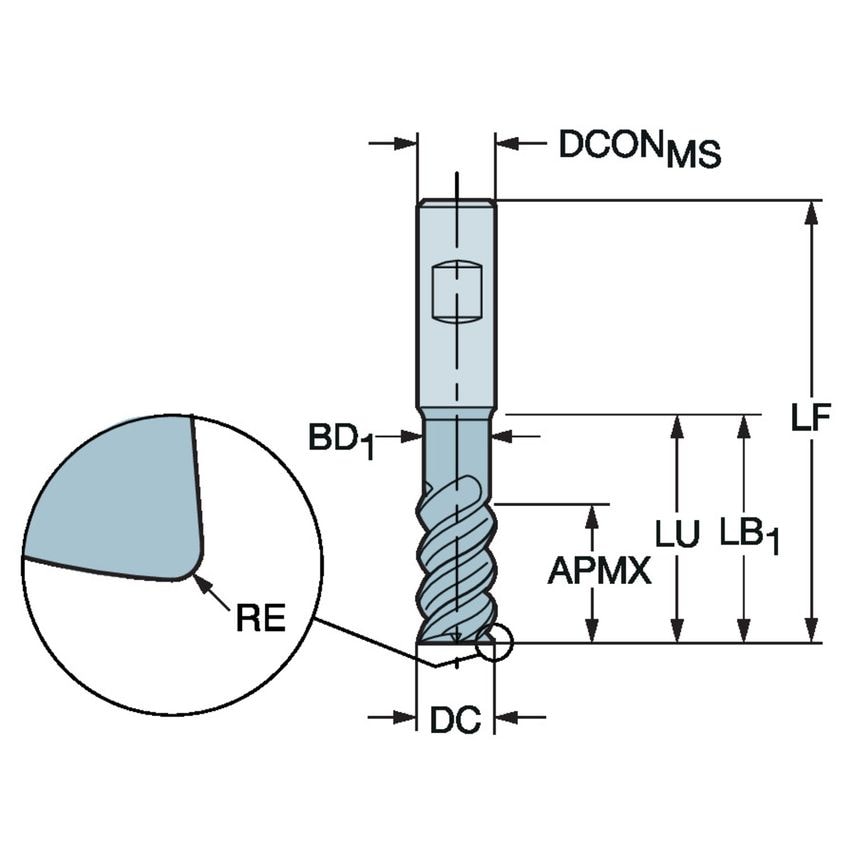

| Corner Radius | 1.524mm |
| Maximum Ramping Angle | 7\u00b0 |
| Grade | 1730 |
| Cutting Diameter | 15.875mm |
| Usable Length | 33.4mm |
| Connection Diameter | 25.4mm |
| Maximum Depth of Cut | 33.4mm |
| CoroPak | 20.1 |
| Rotational Speed Maximum | 23300 1/min |
| Standards Met | COROMANT |
| Center Cutting Capability | Yes |
| Coating Process Type | PVD |
| Basic Standard Group | Coromant |
| Functional Length | 88.9mm |
| Unit Measured | Metric |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 7716361 |
| Weight | 0.21kg |
| Maximum Cutting Depth | 33.4mm |
