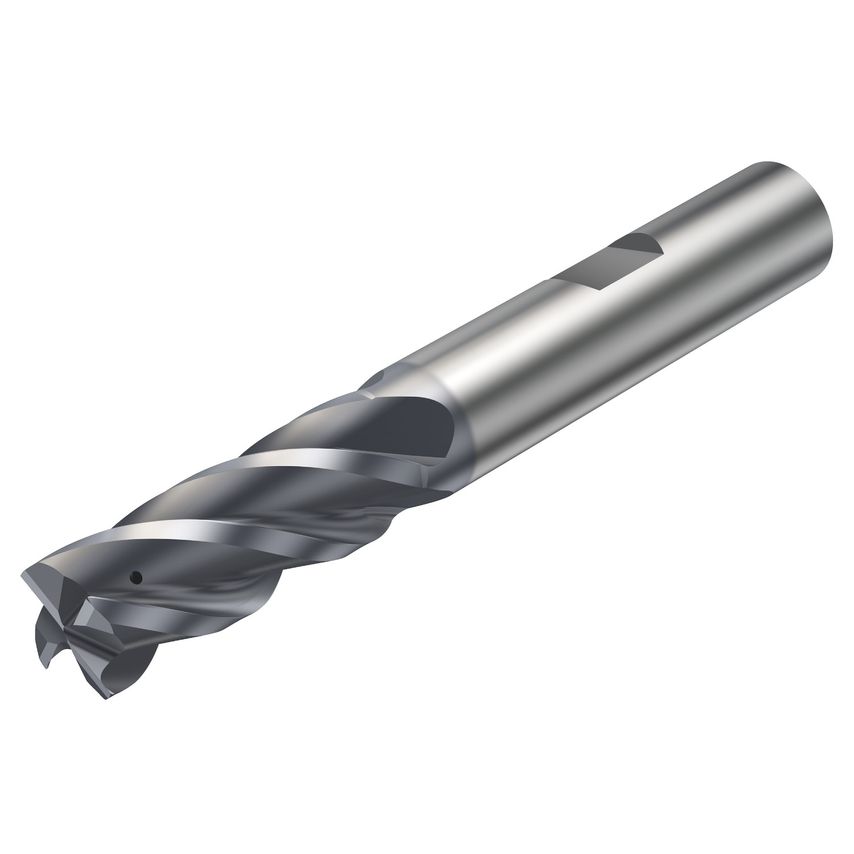

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

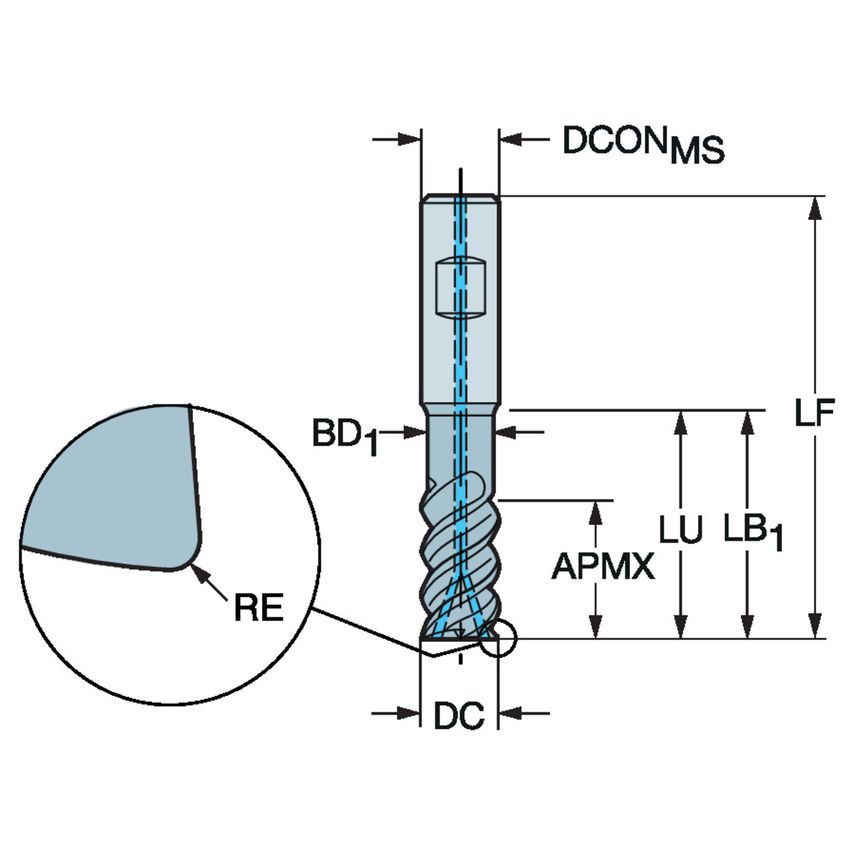

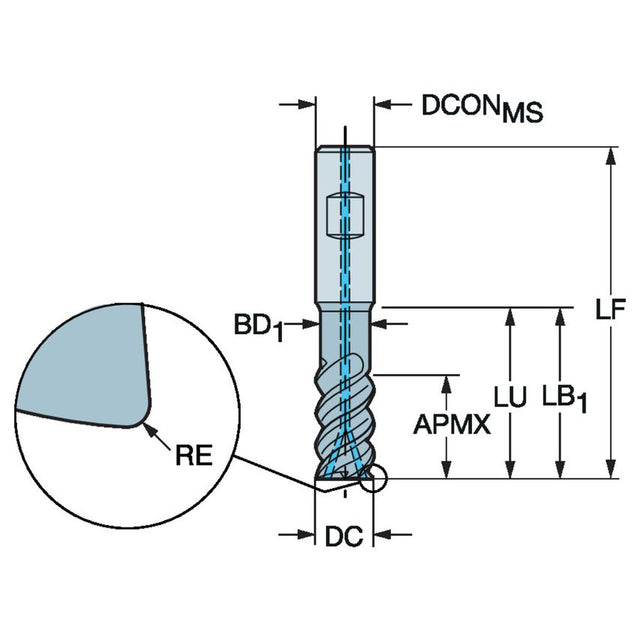

| Corner Radius | 2.286mm |
| Coating Type | AlTiN |
| Standards Met | COROMANT |
| Functional Length | 96mm |
| Coating Process Type | PVD |
| Usable Length | 33.338mm |
| Weight | 0.22kg |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 15.875mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 33.34mm |
| Rotational Speed Maximum | 23300 1/min |
| Unit Measured | Metric |
| Basic Standard Group | Coromant |
| MFR Part No. | 7716362 |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Connection Diameter | 15.875mm |
| Maximum Cutting Depth | 33.34mm |
| Center Cutting Capability | Yes |
| CoroPak | 20.1 |
| Grade | 1740 |
| Maximum Ramping Angle | 5\u00b0 |
