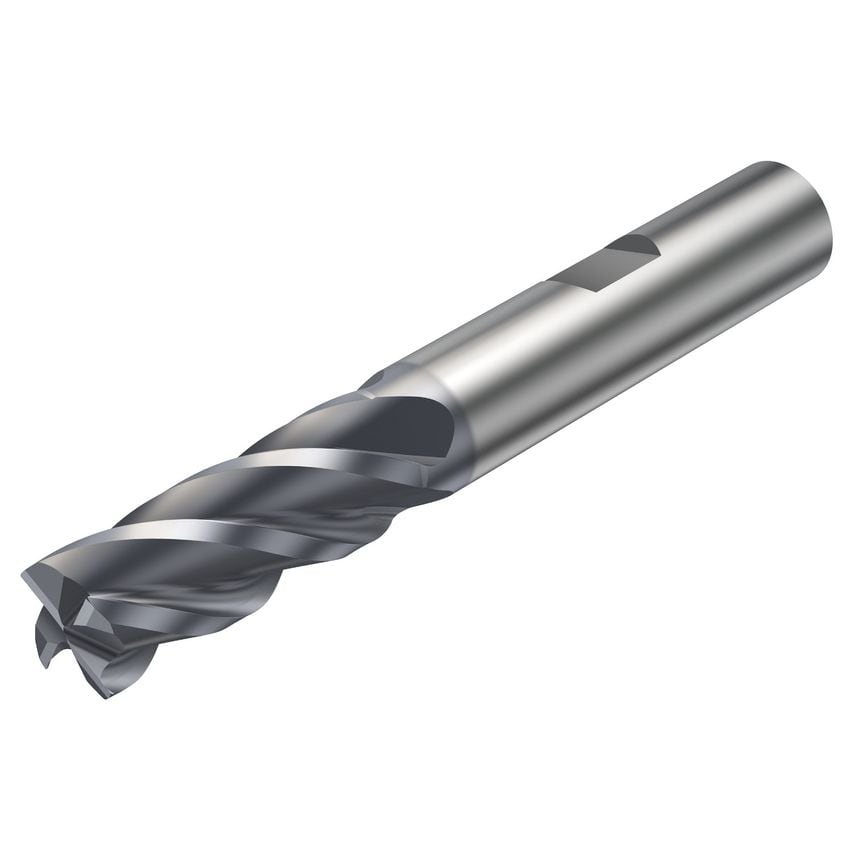

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

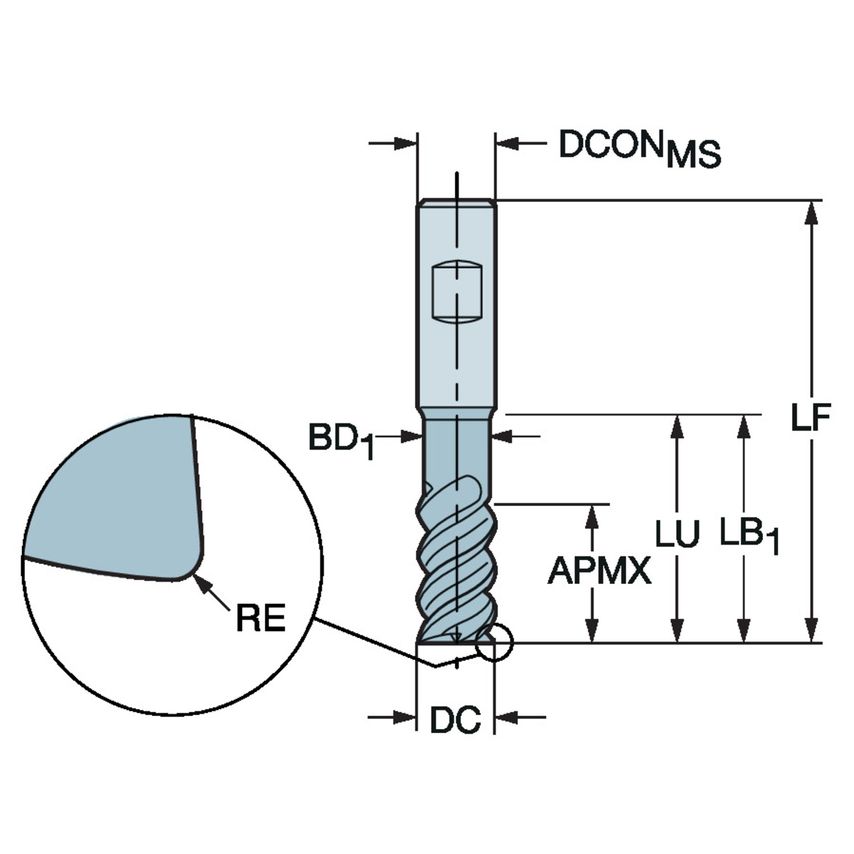

| Cutting Diameter | 19.05mm |
| Maximum Ramping Angle | 7\u00b0 |
| Usable Length | 41.275mm |
| MFR Part No. | 7716376 |
| Connection Diameter | 3.5mm |
| Weight | 0.39kg |
| CoroPak | 20.1 |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Coating Type | AlCrN |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Corner Radius | 1.524mm |
| Maximum Cutting Depth | 41.27mm |
| Functional Length | 109.6mm |
| Maximum Depth of Cut | 41.27mm |
| Grade | 1730 |
| Rotational Speed Maximum | 15300 1/min |
| Basic Standard Group | Coromant |
