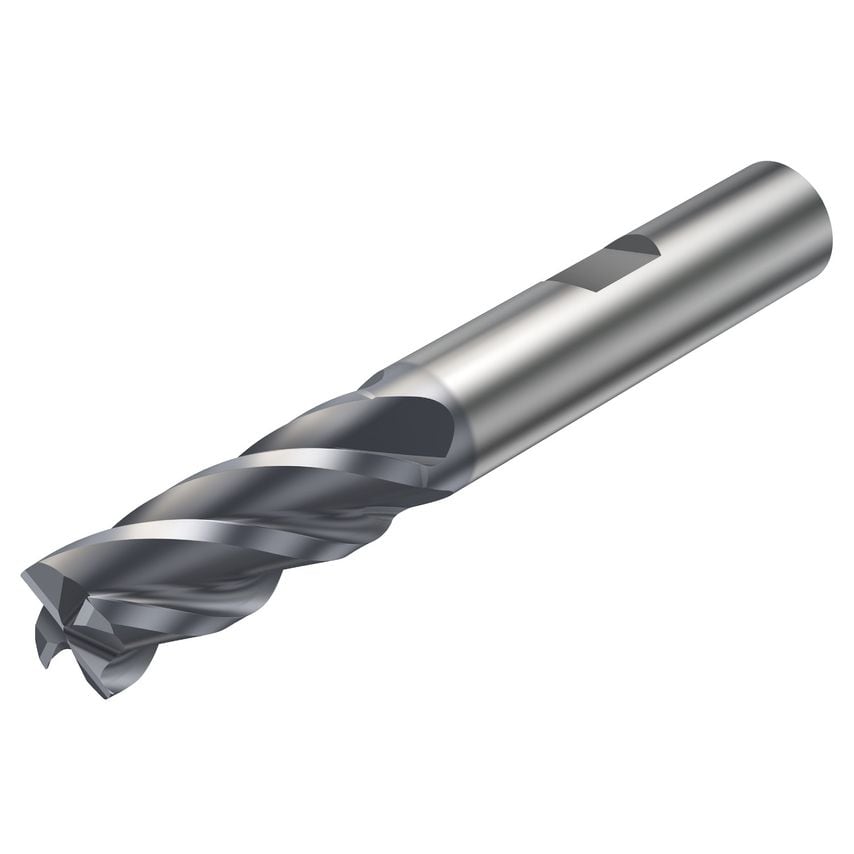

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Standards Met | COROMANT |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 7\u00b0 |
| MFR Part No. | 7716374 |
| Through Hole Function Property | Yes |
| Grade | 1730 |
| Coolant Entry Style | Without Coolant |
| Coating Type | AlCrN |
| Material | Solid Carbide |
| Rotational Speed Maximum | 15300 1/min |
| Connection Diameter | 3.5mm |
| Maximum Cutting Depth | 41.27mm |
| Cutting Diameter | 19.05mm |
| Corner Radius | 0.762mm |
| Maximum Depth of Cut | 41.27mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 20.1 |
| Functional Length | 109.6mm |
| Usable Length | 41.275mm |
| Weight | 0.39kg |
| Basic Standard Group | Coromant |
