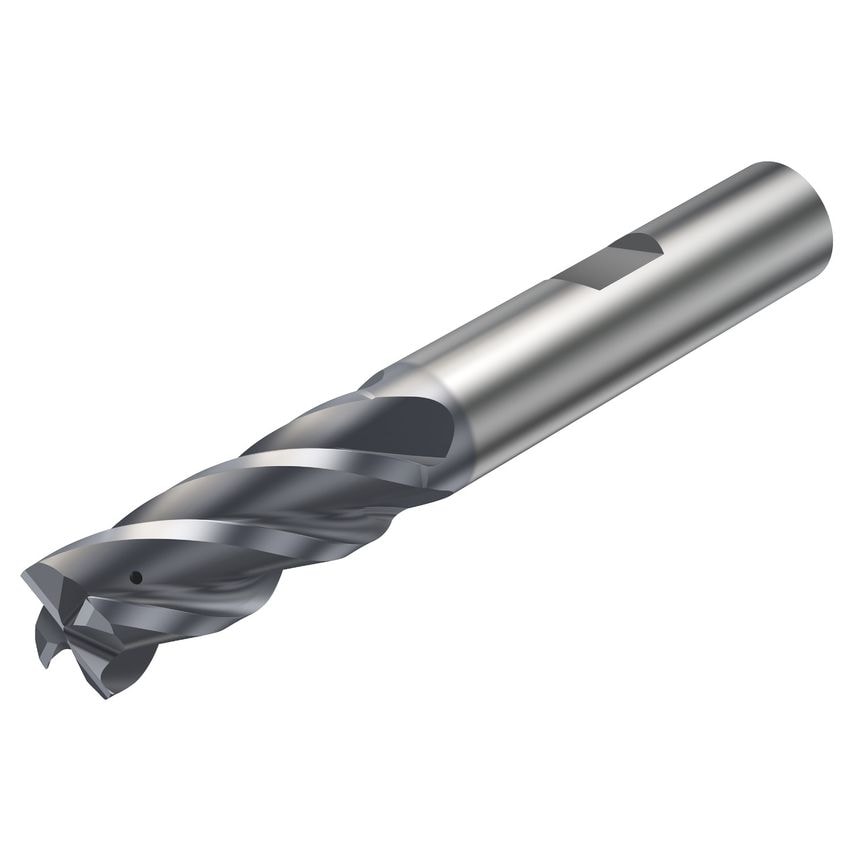

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 20.1 |
| Maximum Ramping Angle | 5\u00b0 |
| Connection Diameter | 16mm |
| Weight | 0.23kg |
| Maximum Depth of Cut | 34mm |
| Standards Met | COROMANT |
| Basic Standard Group | Coromant |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 16mm |
| Maximum Cutting Depth | 34mm |
| Through Hole Function Property | Yes |
| Center Cutting Capability | Yes |
| Grade | 1740 |
| Coating Type | AlTiN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 22800 1/min |
| Coating Process Type | PVD |
| Functional Length | 97mm |
| Corner Radius | 3mm |
| Material | Solid Carbide |
| MFR Part No. | 7716370 |
| Usable Length | 34mm |
