Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

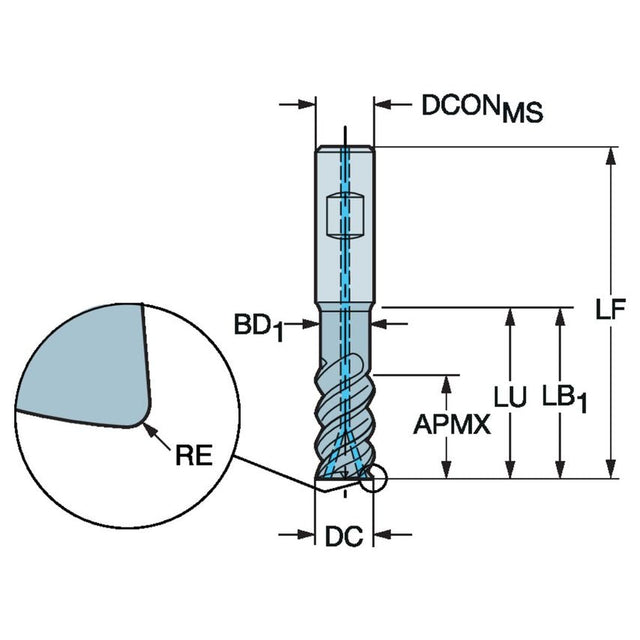

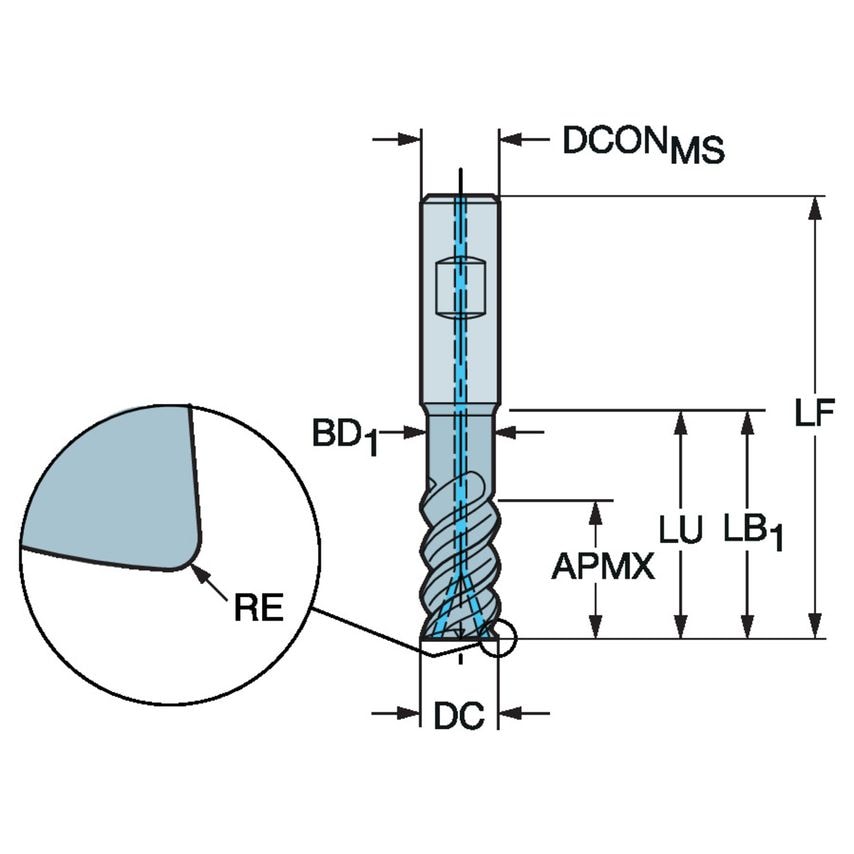

| Corner Radius | 0.762mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Cutting Diameter | 19.05mm |
| Coating Type | AlTiN |
| Material | Solid Carbide |
| Maximum Depth of Cut | 41.27mm |
| Functional Length | 109.6mm |
| CoroPak | 20.1 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 15300 1/min |
| Usable Length | 41.275mm |
| Standards Met | COROMANT |
| Grade | 1740 |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 41.27mm |
| Maximum Ramping Angle | 5\u00b0 |
| Weight | 0.37kg |
| MFR Part No. | 7716373 |
| Connection Diameter | 19.05mm |
