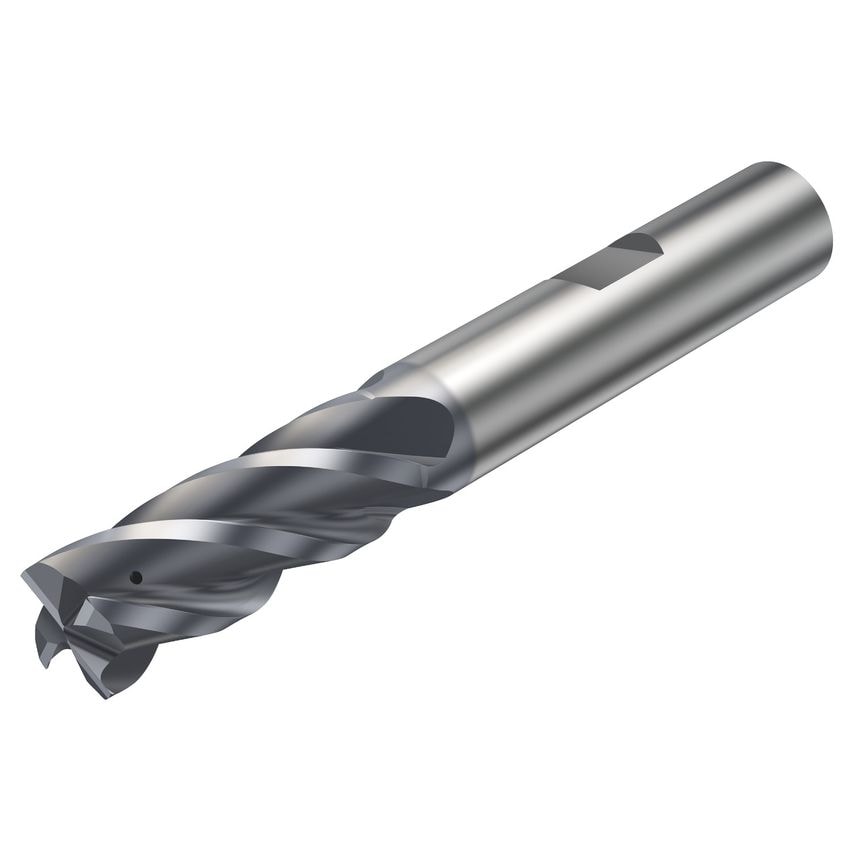

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

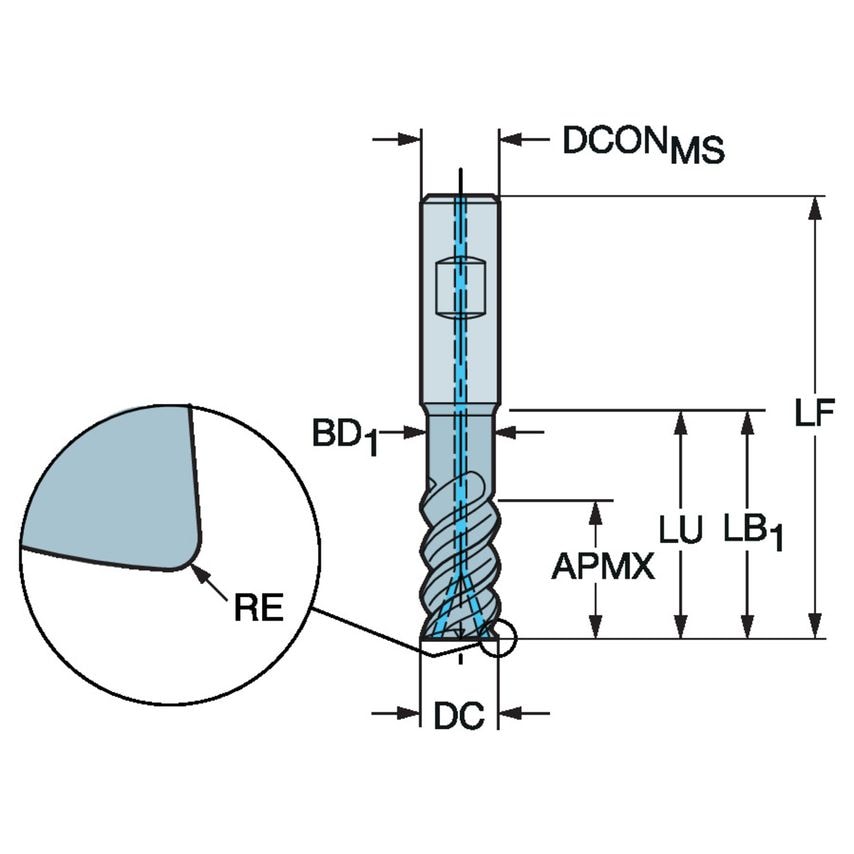

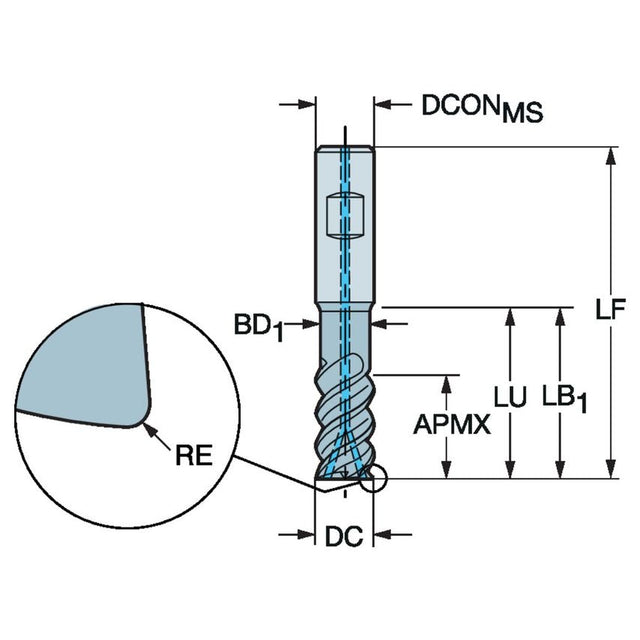

| CoroPak | 20.1 |
| MFR Part No. | 7716372 |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Maximum Depth of Cut | 34mm |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Cutting Depth | 34mm |
| Rotational Speed Maximum | 22800 1/min |
| Through Hole Function Property | Yes |
| Coating Type | AlTiN |
| Basic Standard Group | Coromant |
| Usable Length | 34mm |
| Functional Length | 97mm |
| Center Cutting Capability | Yes |
| Cutting Diameter | 16mm |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 5mm |
| Connection Diameter | 16mm |
| Material | Solid Carbide |
| Weight | 0.23kg |
| Unit Measured | Metric |
| Grade | 1740 |
