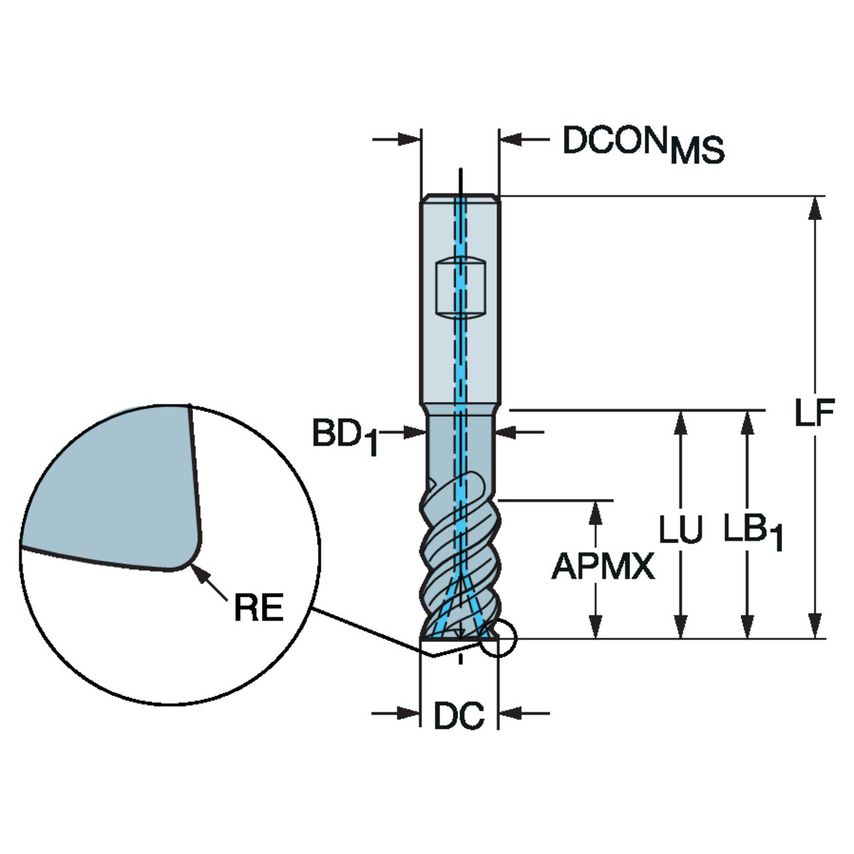

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Connection Diameter | 20mm |
| CoroPak | 20.1 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Basic Standard Group | Coromant |
| Weight | 0.4kg |
| Usable Length | 42mm |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Unit Measured | Metric |
| Cutting Diameter | 20mm |
| Rotational Speed Maximum | 13200 1/min |
| Maximum Cutting Depth | 42mm |
| Grade | 1740 |
| Corner Radius | 1mm |
| Coating Type | AlTiN |
| Material | Solid Carbide |
| Standards Met | COROMANT |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 7716380 |
| Maximum Depth of Cut | 42mm |
| Functional Length | 109.6mm |
