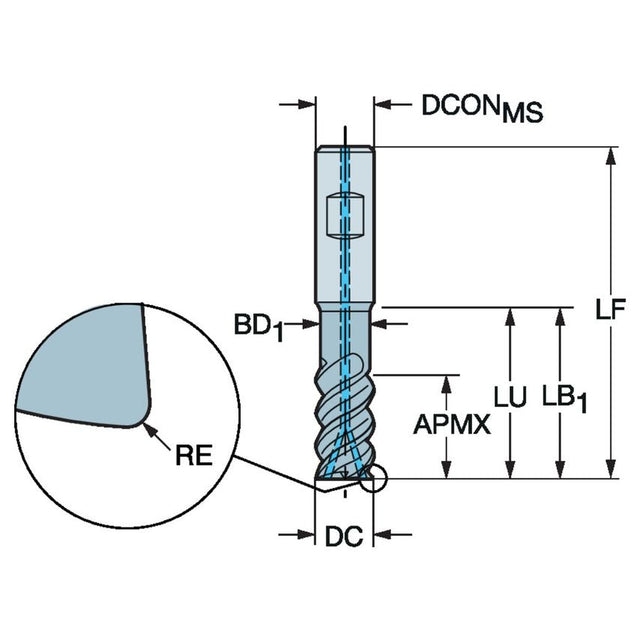

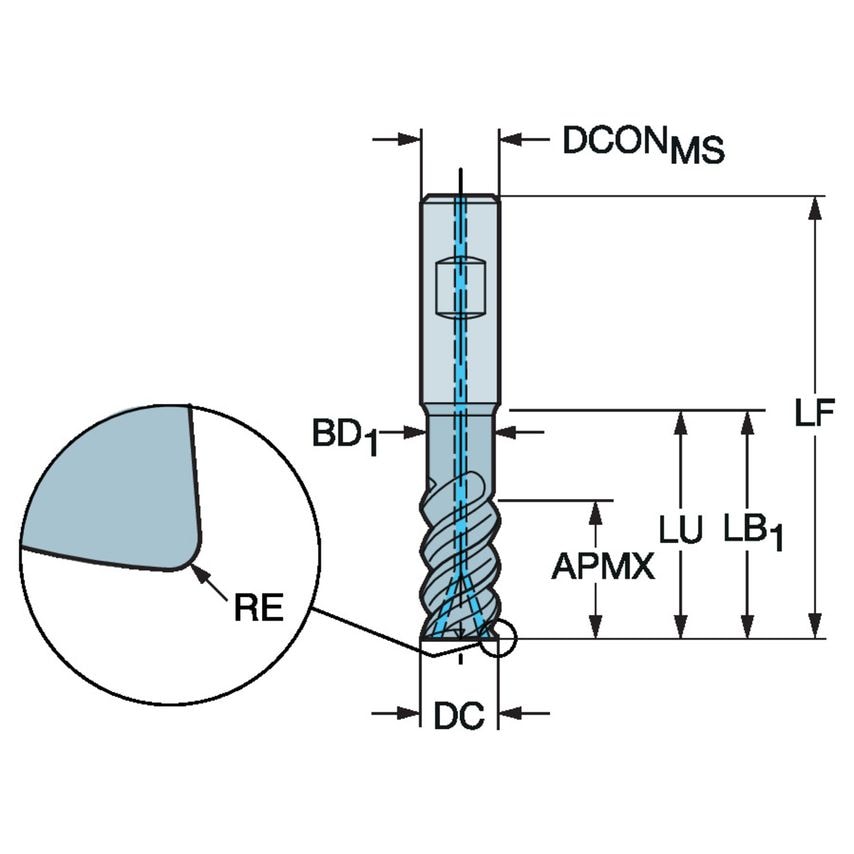

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 13200 1/min |
| Cutting Diameter | 20mm |
| Center Cutting Capability | Yes |
| Standards Met | COROMANT |
| Corner Radius | 4mm |
| Grade | 1740 |
| Coating Process Type | PVD |
| Weight | 0.4kg |
| Usable Length | 42mm |
| Connection Diameter | 20mm |
| Maximum Depth of Cut | 42mm |
| Functional Length | 109.6mm |
| Maximum Cutting Depth | 42mm |
| Unit Measured | Metric |
| Coating Type | AlTiN |
| CoroPak | 20.1 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7716385 |
| Basic Standard Group | Coromant |
| Maximum Ramping Angle | 5\u00b0 |
