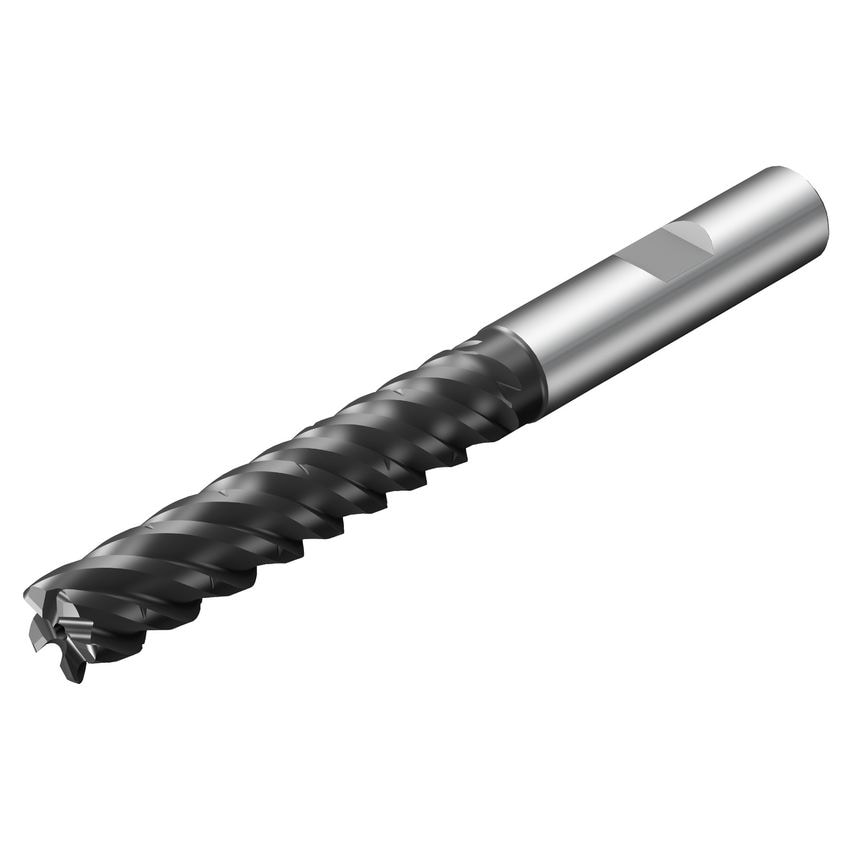

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

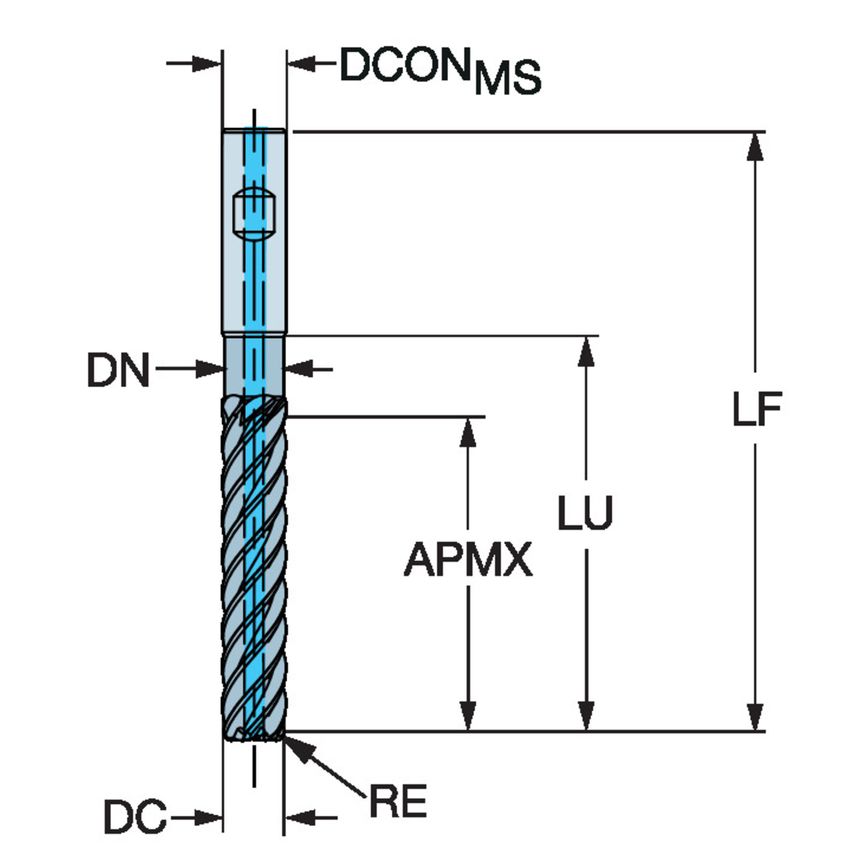

| Unit Measured | Imperial |
| Coating Type | TiAlSiN |
| Basic Standard Group | Coromant |
| MFR Part No. | 7963645 |
| CoroPak | 20.2 |
| Grade | 1745 |
| Corner Radius | 3.048mm |
| Maximum Ramping Angle | 2\u00b0 |
| Usable Length | 70.644mm |
| Functional Length | 119.063mm |
| Connection Diameter | 11mm |
| Maximum Depth of Cut | 63.5mm |
| Material | Solid Carbide |
| Coolant Entry Style | 1 |
| Weight | 0.18kg |
| Through Hole Function Property | Yes |
| Cutting Diameter | 12.7mm |
| Coating Process Type | PVD |
| Center Cutting Capability | No |
| Maximum Cutting Depth | 63.5mm |
| Shank Type | Weldon |
| Product Type | Solid Carbide Endmill |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Rotational Speed Maximum | 40000 1/min |
| Standards Met | COROMANT |
