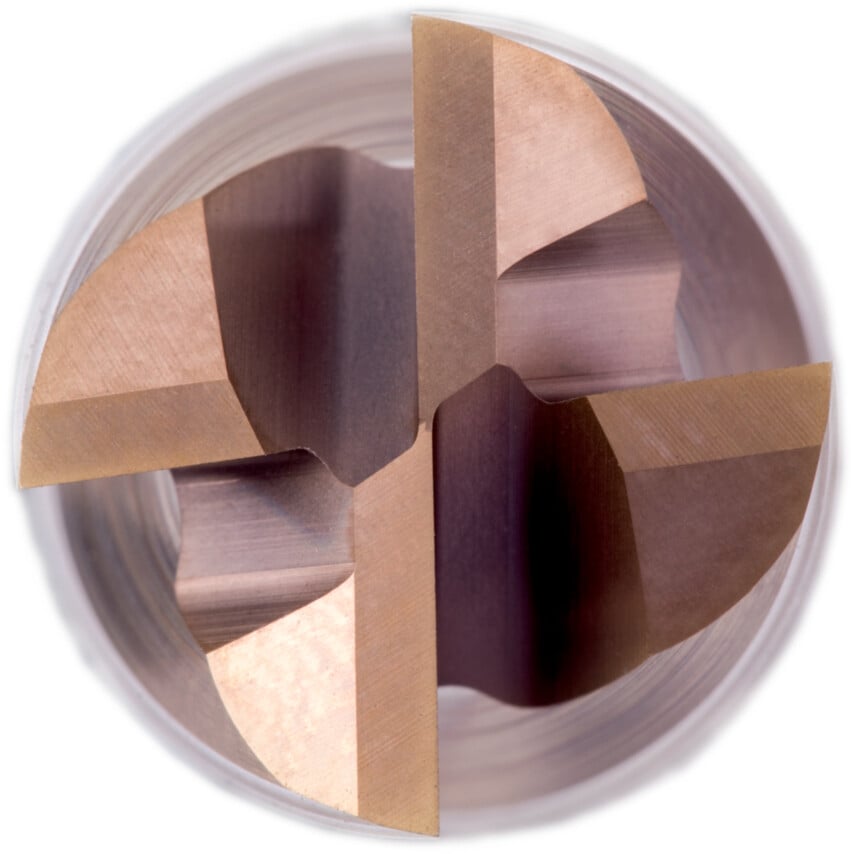

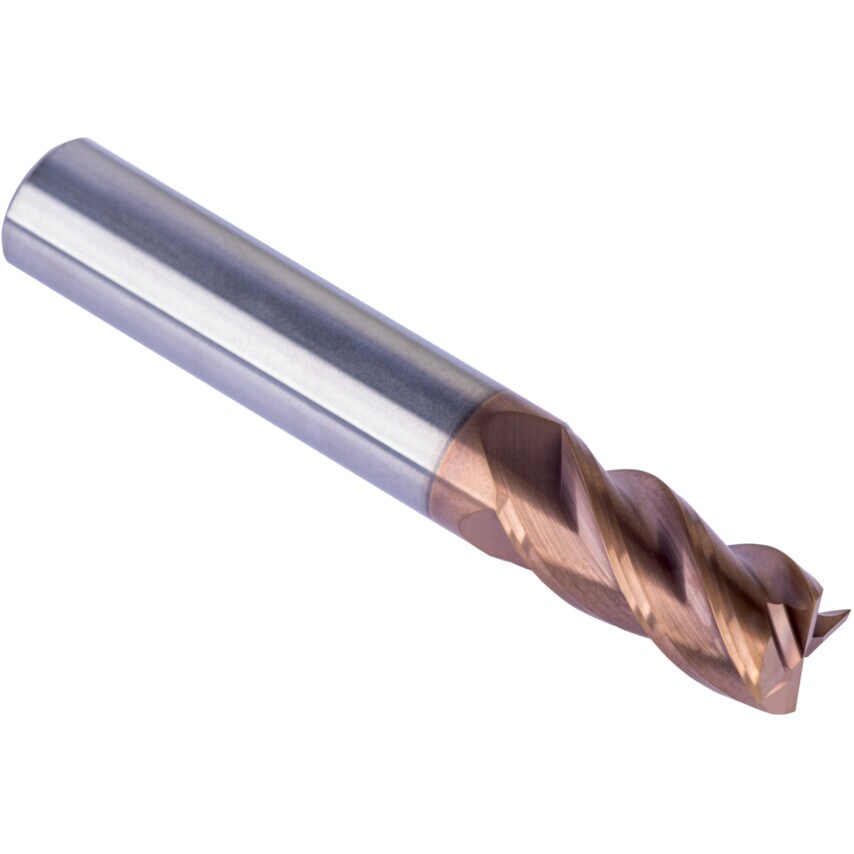

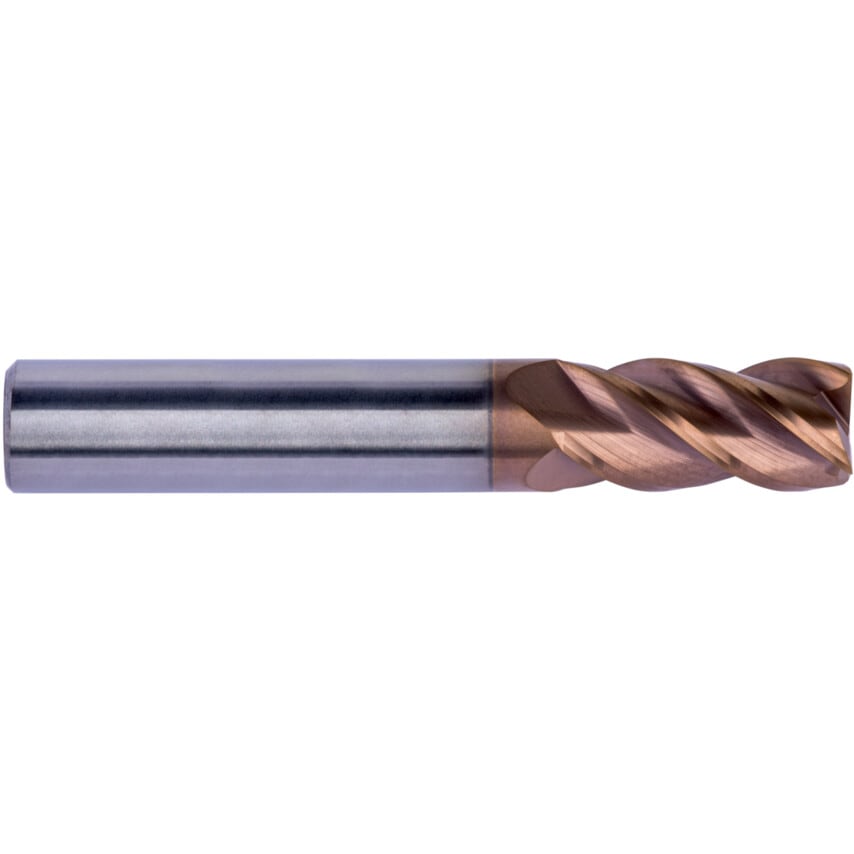

The Dormer Regular Length End Mill is a versatile tool designed for various machining operations in hardened materials. With its solid carbide construction and 4 flutes, it offers durability and efficiency. The TiSiN coating enhances tool life, enabling higher cutting speeds and improved heat resistance, making it suitable for dry machining applications. The 40 helix and -6 rake angle make it particularly effective for shoulder milling, plunging, ramping, progressive plunge milling, and helical milling, ensuring precision and performance in challenging machining tasks.Features and Benefits Titanium Silicon Nitride coating for longer tool life, enabling higher cutting speeds and increased heat resistance, making them ideal for dry machining Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
| Material Grade | Micrograin |
| Material | Carbide |
| Product Type | End Mills |
| Coolant Delivery | External |
| Overall Length | 50mm |
| Length Type | Regular |
| System of Measurement | Metric |
| Finish/Coating | TiSiN |
| Plunge Type | Centre Cutting |
| Cutting Direction | Neutral |
| Flute Type | Straight |
| End Mill Type | End Mill |
| Helix Angle | 40\u00b0 |
| MFR Part No. | S5614.0 |
| ISO Category | H |
| Cutter Diameter Tolerance | Medium |
| Shank Type | Plain Round |
| Shank Diameter | 4.0mm |
| Cutter Diameter | 4mm |
| Cutter Style | Square End |
| Standards Met | DIN 6535 |
| Series | S561 |
| Milling Cutter Type | End Mills |
| Number of Flutes | 4 |
| Flute Length | 12mm |
