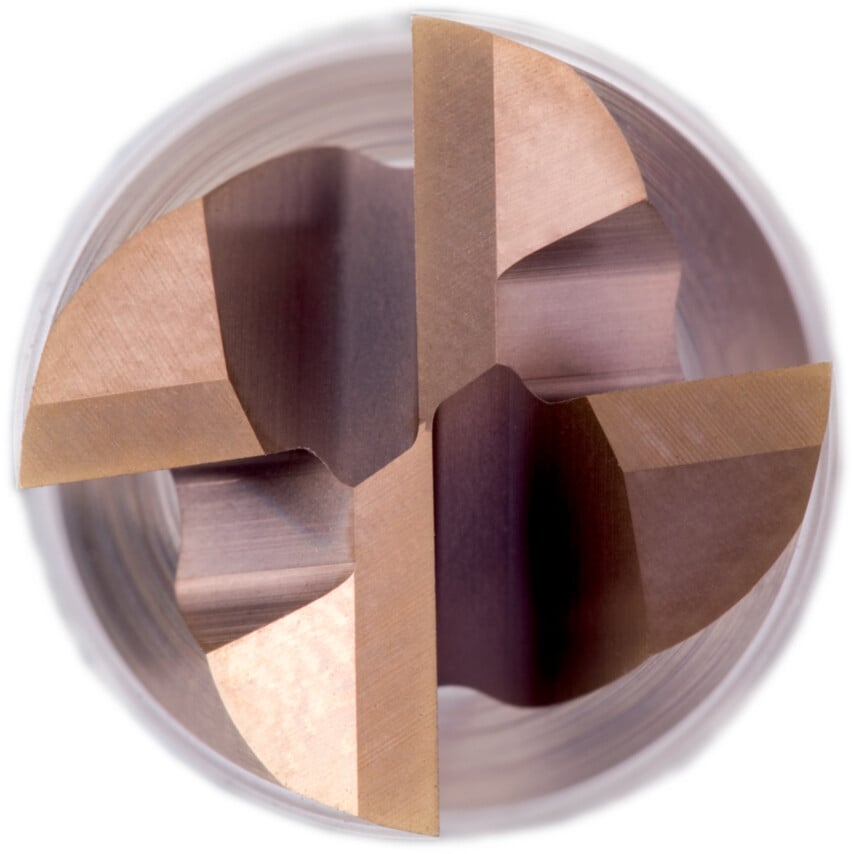

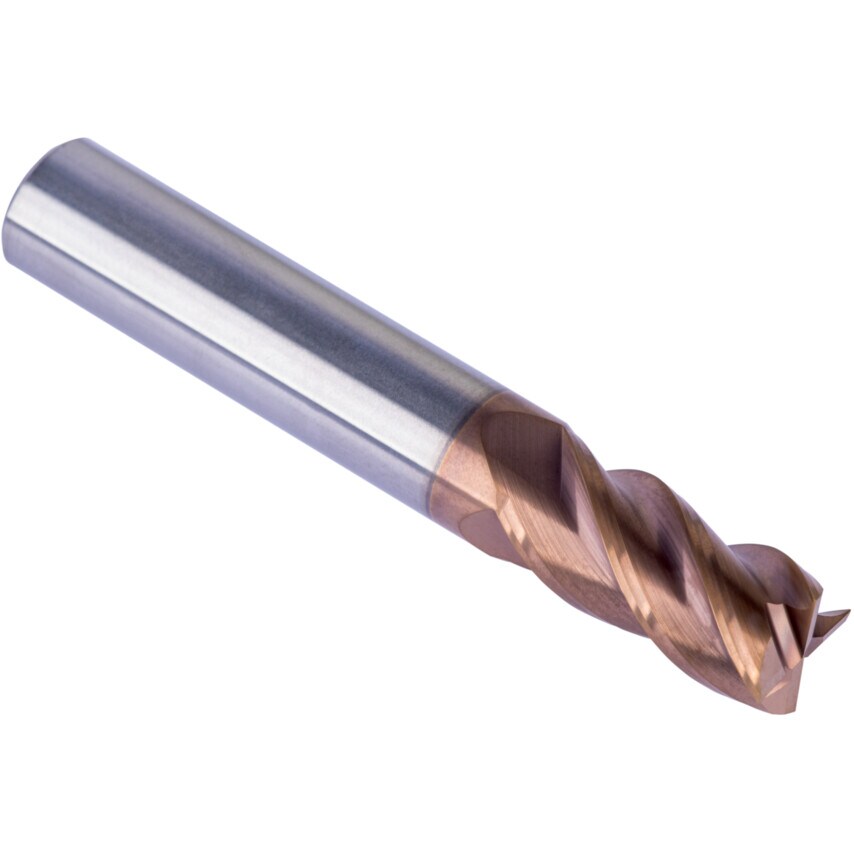

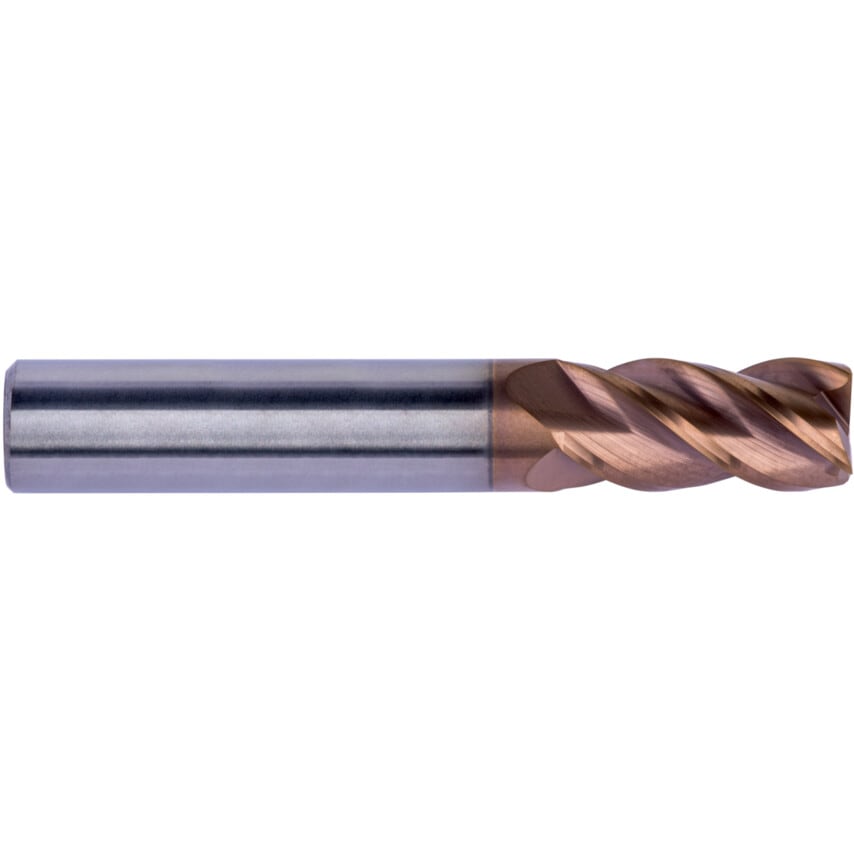

The Dormer Regular Length End Mill is a versatile tool designed for various machining operations in hardened materials. With its solid carbide construction and 4 flutes, it offers durability and efficiency. The TiSiN coating enhances tool life, enabling higher cutting speeds and improved heat resistance, making it suitable for dry machining applications. The 40 helix and -6 rake angle make it particularly effective for shoulder milling, plunging, ramping, progressive plunge milling, and helical milling, ensuring precision and performance in challenging machining tasks.Features and Benefits Titanium Silicon Nitride coating for longer tool life, enabling higher cutting speeds and increased heat resistance, making them ideal for dry machining Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
| Cutter Style | Square End |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| Milling Cutter Type | End Mills |
| Helix Angle | 40\u00b0 |
| Cutting Direction | Neutral |
| Material Grade | Micrograin |
| End Mill Type | End Mill |
| Overall Length | 90mm |
| Flute Length | 32mm |
| Finish/Coating | TiSiN |
| Series | S561 |
| Number of Flutes | 4 |
| Shank Type | Plain Round |
| ISO Category | H |
| Cutter Diameter Tolerance | Medium |
| Cutter Diameter | 14mm |
| Length Type | Regular |
| Standards Met | DIN 6535 |
| Flute Type | Straight |
| Coolant Delivery | External |
| MFR Part No. | S56114.0 |
| System of Measurement | Metric |
| Shank Diameter | 14.0mm |
| Product Type | End Mills |
