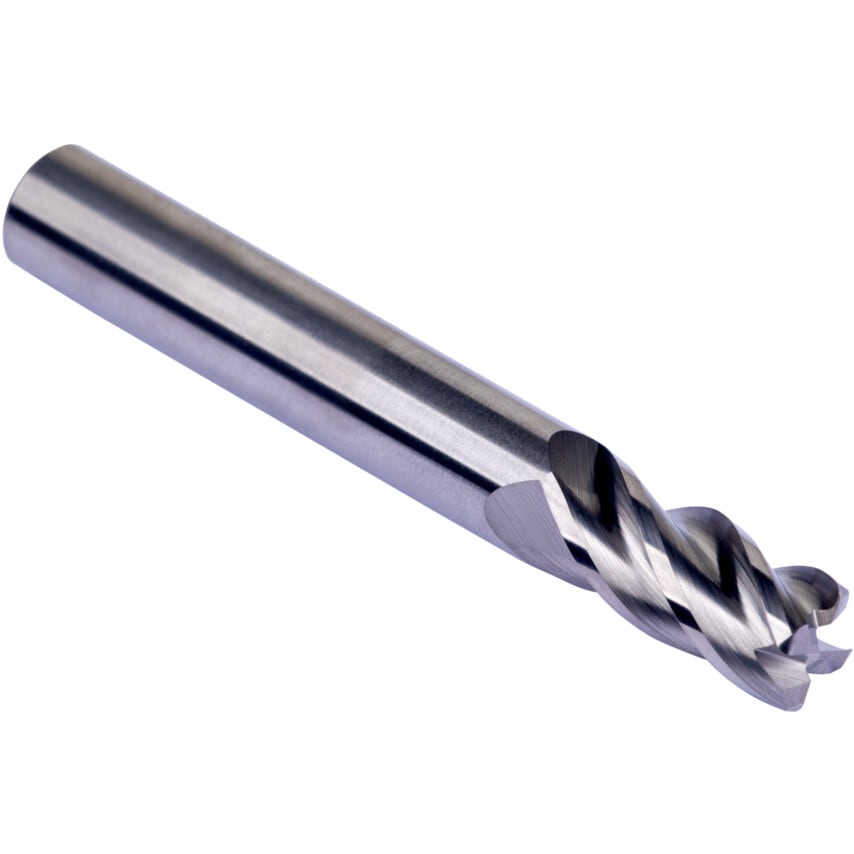

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Helix Angle | 40\u00b0 |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Corner Radius | 2.5mm |
| Flute Type | Helical |
| Cutter Diameter | 12mm |
| Coolant Delivery | External |
| Standards Met | DIN 6535 |
| System of Measurement | Metric |
| Series | Short |
| Plunge Type | Centre Cutting |
| ISO Category | N |
| Flute Length | 26mm |
| Milling Cutter Type | End Mills |
| Length Type | Short |
| Shank Type | Straight |
| Overall Length | 83mm |
| Finish/Coating | Bright |
| Material | Carbide |
| Cutter Style | Corner Radius |
| Shank Diameter | 12mm |
| MFR Part No. | S66212.0XR2.5 |
| Cutting Direction | Neutral |
| Cutter Diameter Tolerance | Short |
