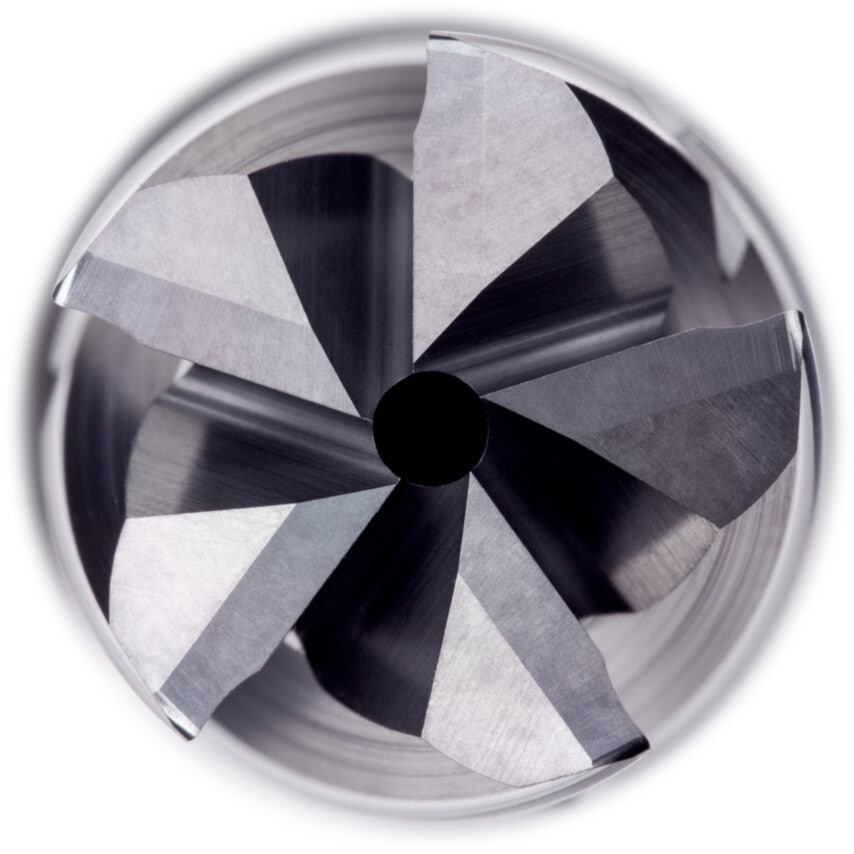

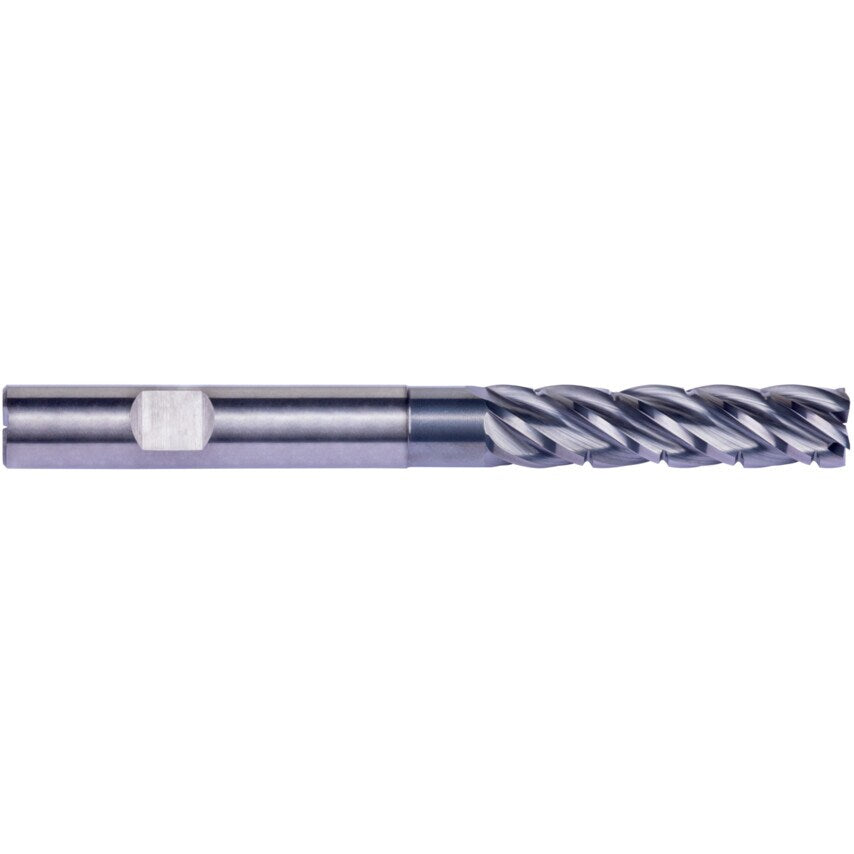

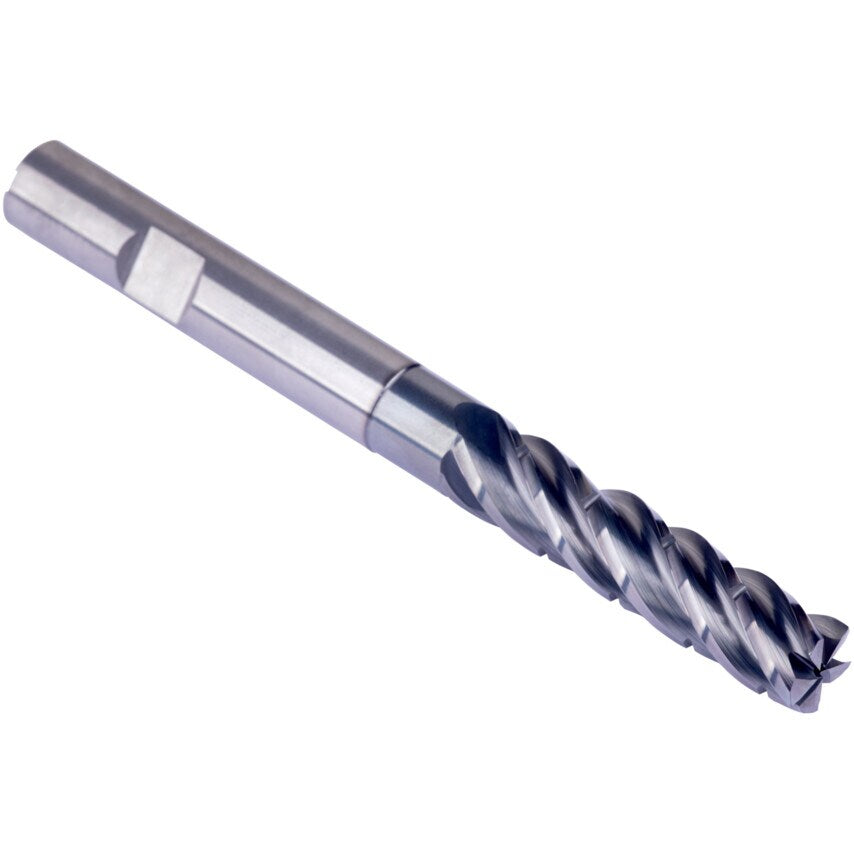

S773HB 16.00mm HM AlCrN Long 5FL Mill Uneq Helix, Chip Div, Thr Cool

Presenting the Dormer Trochoidal End Mill, a long series powerhouse designed for precision machining in steel, cast steel, stainless steel, cast iron, and high-temperature alloys. Boasting an FS chip-divider and 5 flutes, this solid carbide tool features an unequal helix and a 10 rake angle, making it an optimal choice for shoulder milling, ramping, helical milling, and trochoidal milling applications. The AlCrN coating adds an extra layer of excellence, providing thermal stability, reducing friction, ensuring excellent wear resistance, and prolonging overall durability. Elevate your machining capabilities with this advanced Trochoidal End Mill from Dormer, engineered for efficiency and reliability in a variety of challenging materials and milling operations.Features and Benefits Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materialsTypical Applications K - Cast Iron (castings of iron and carbon alloys with 2% carbon content) M - Stainless steel (corrosion resistant steels with 11% chromium content) P - Steel and cast steel (steels with alloy content 10% and a hardness of 45HRC) S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)

Corner Radius	0.3mm
Shank Diameter	16mm
Shank Type	Weldon Flat
ISO Category	P
Cutter Diameter	16mm
Standards Met	Dormer
Flute Length	60mm
Milling Cutter Type	End Mills
Material	Carbide
Number of Flutes	5
MFR Part No.	S773HB16.0
Cutter Style	Unequal
Cutter Diameter Tolerance	Long
Flute Type	Helical
Cutting Direction	Neutral
Helix Angle	1\u00b0
Series	Trochoidal Long
Overall Length	125mm
Material Grade	HC
System of Measurement	Metric
Finish/Coating	AlCrN
End Mill Type	End Mill
Coolant Delivery	External
Length Type	Long
