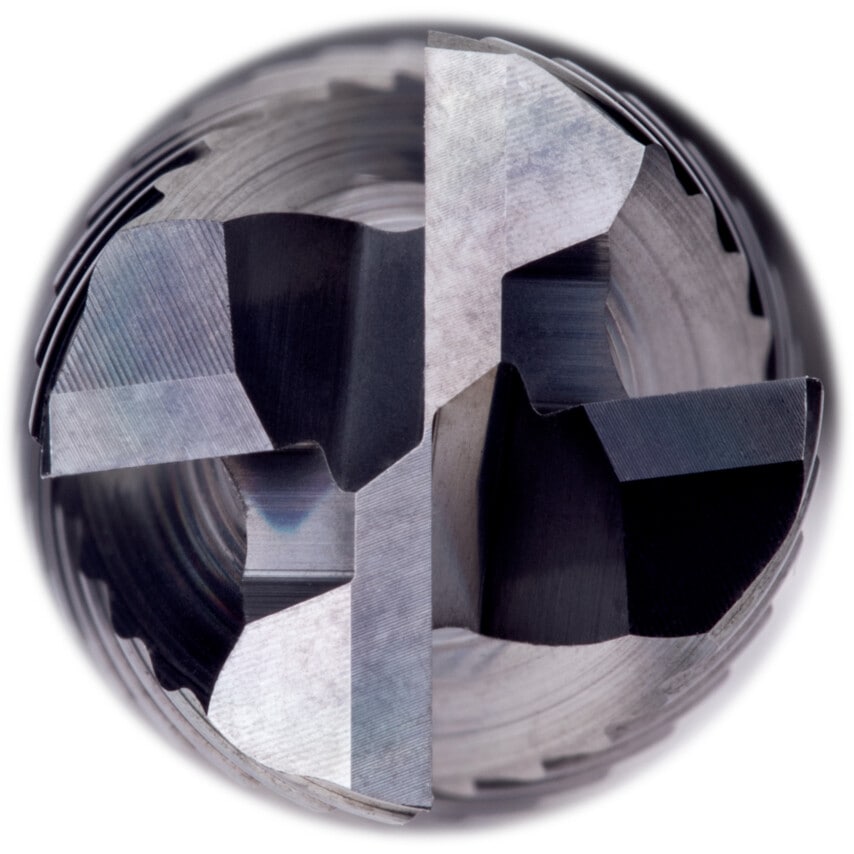

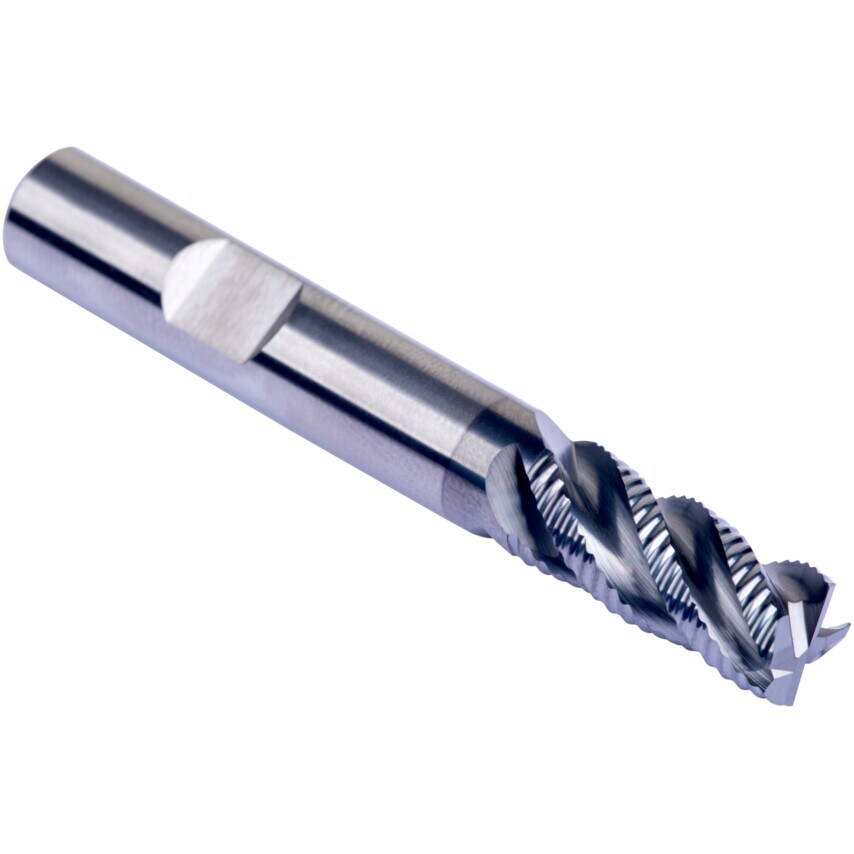

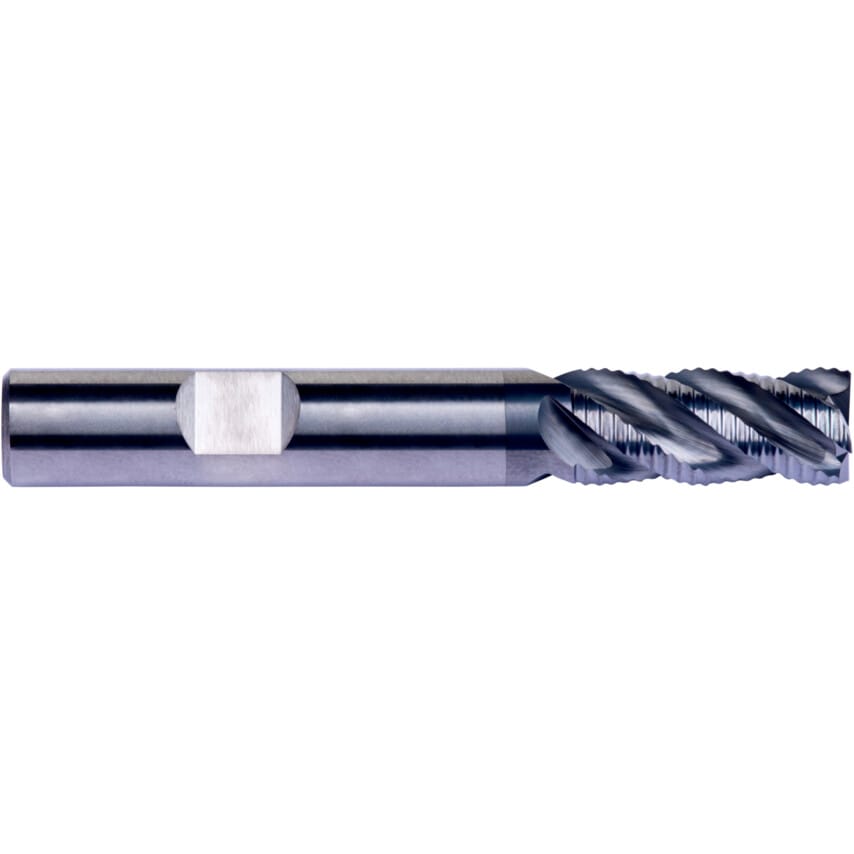

The Dormer Short Series Roughing End Mill is a high-performance cutting tool designed for precision machining in various materials. With its NRA asymmetrical coarse pitch profile and four flutes, this solid carbide end mill is optimized for efficient shoulder milling and slot milling operations in steel, cast steel, stainless steel, cast iron, and high-temperature alloys. Featuring a 40 helix and 10 rake angle, this end mill ensures exceptional cutting performance and chip evacuation. The tool is coated with AlCrN, providing thermal stability, minimizing friction, and offering outstanding wear resistance. This coating enhances the end mill's durability, making it an ideal choice for demanding machining applications. Whether you're working with steel or high-temperature alloys, the Dormer Short Series Roughing End Mill delivers precise and reliable results, making it a valuable tool in machining operations.Features and Benefits Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materialsTypical Applications K - Cast Iron (castings of iron and carbon alloys with 2% carbon content) M - Stainless steel (corrosion resistant steels with 11% chromium content) P - Steel and cast steel (steels with alloy content 10% and a hardness of 45HRC) S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Finish/Coating | AlCrN |
| Shank Diameter | 18mm |
| MFR Part No. | S765HB18.0 |
| Material | Carbide |
| Corner Radius | 0.3mm |
| Coolant Delivery | External |
| Overall Length | 100mm |
| Cutter Style | Square End |
| Cutter Diameter | 18mm |
| Plunge Type | Centre Cutting |
| Cutting Direction | Neutral |
| Flute Type | Helical |
| System of Measurement | Metric |
| Standards Met | DIN 6535 |
| Helix Angle | 30\u00b0 |
| Number of Flutes | 4 |
| Series | Short |
| Milling Cutter Type | End Mills |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | Short |
| ISO Category | S |
| Length Type | Short |
| Shank Type | Straight |
| Flute Length | 38mm |
