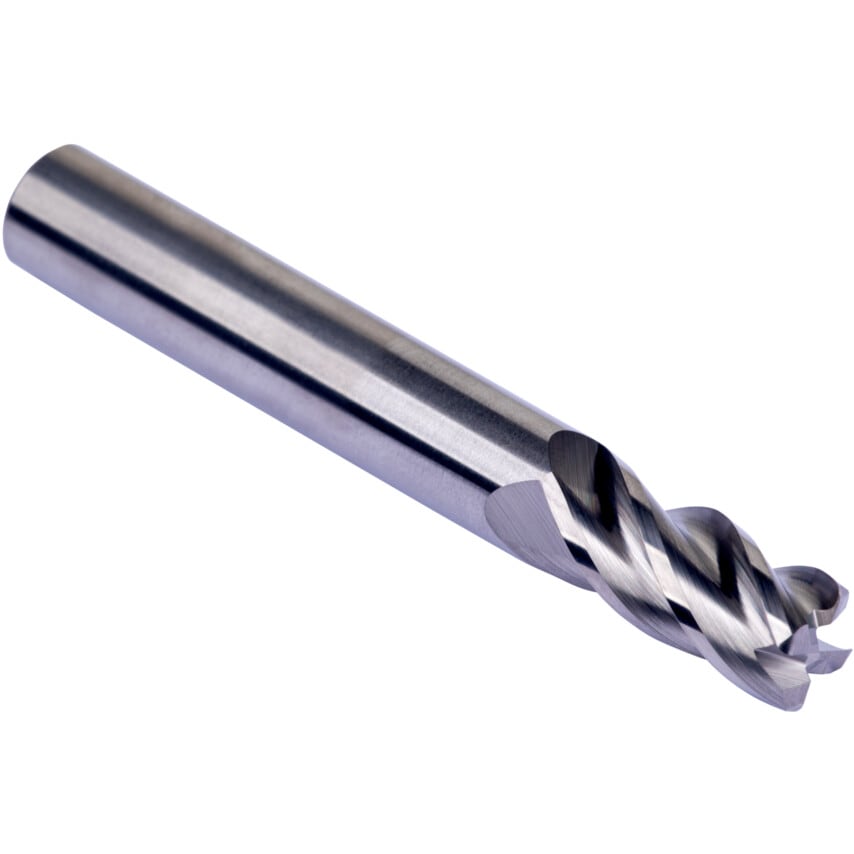

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| MFR Part No. | S66216.0XR3.0 |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Standards Met | DIN 6535 |
| Helix Angle | 40\u00b0 |
| Finish/Coating | Bright |
| System of Measurement | Metric |
| Cutter Style | Corner Radius |
| Cutter Diameter Tolerance | Short |
| Coolant Delivery | External |
| Cutting Direction | Neutral |
| Overall Length | 92mm |
| Plunge Type | Centre Cutting |
| Flute Length | 32mm |
| ISO Category | N |
| Material | Carbide |
| Shank Diameter | 16mm |
| Length Type | Short |
| Series | Short |
| Shank Type | Straight |
| Milling Cutter Type | End Mills |
| Corner Radius | 3mm |
| Number of Flutes | 4 |
| Cutter Diameter | 16mm |
