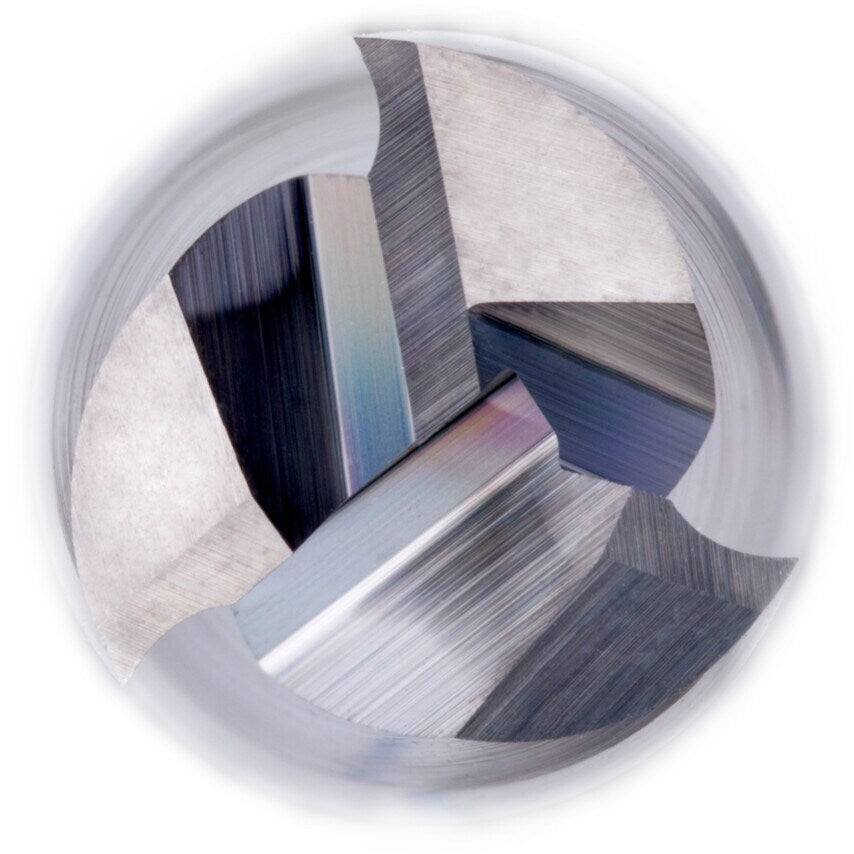

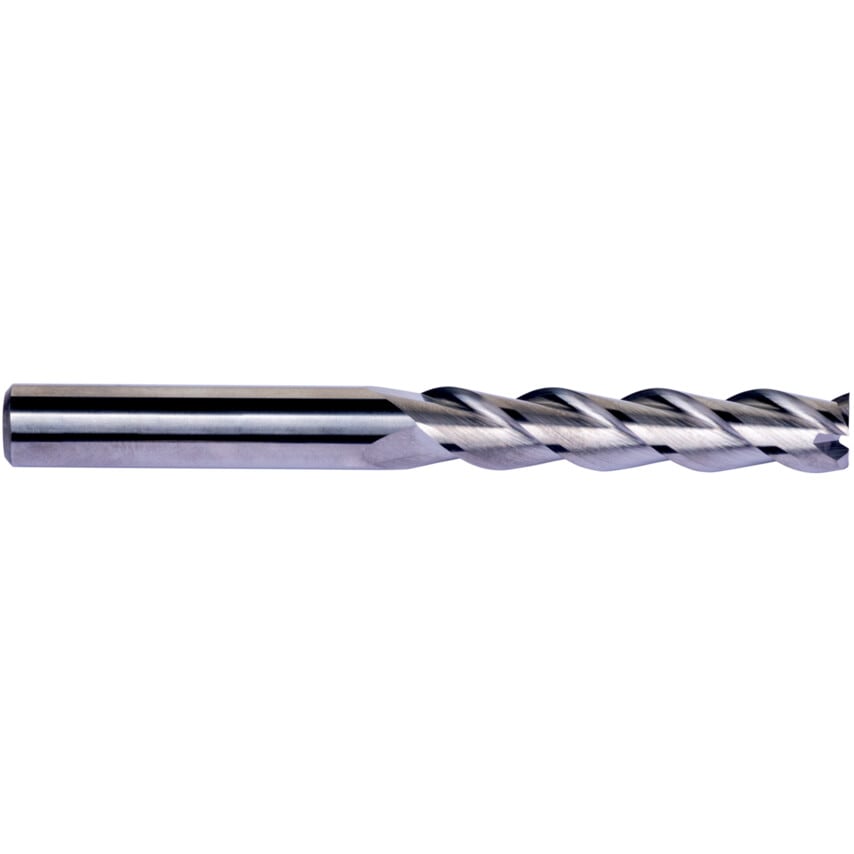

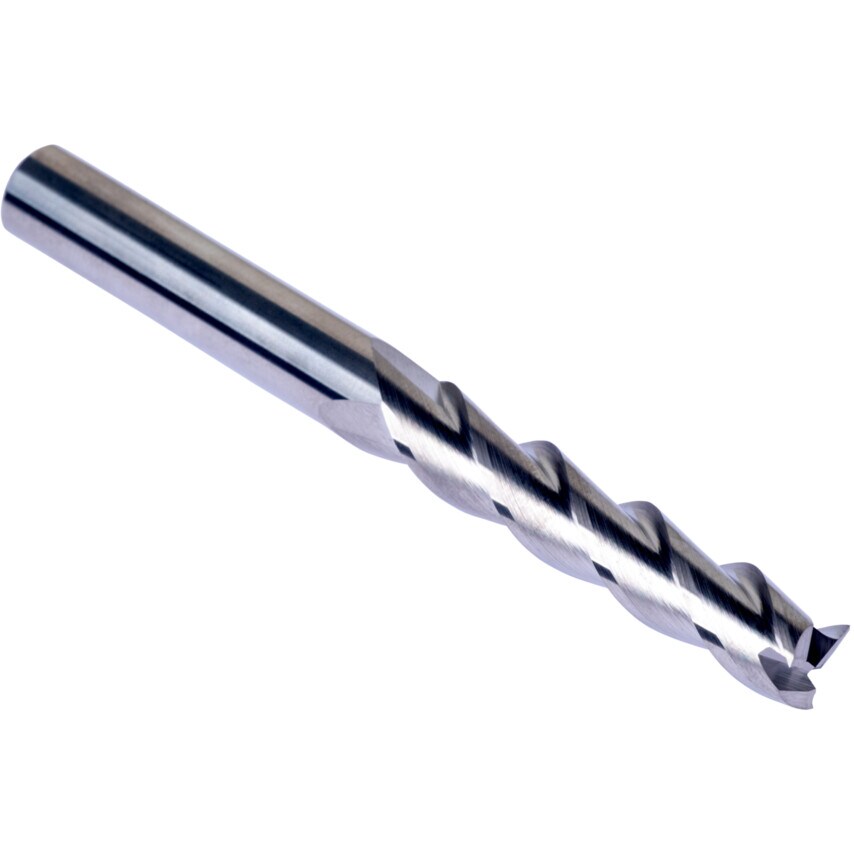

Introducing the Dormer Extra Long Series End Mill, a cutting-edge solution for precision machining in non-ferrous metals. This solid carbide tool features 3 flutes, a bright finish, a 40 helix, and a 13 rake angle, specifically designed for efficient shoulder milling applications. Crafted from Micrograin Carbide, it ensures extreme hardness and wear resistance, significantly extending tool life when tackling challenging materials. Elevate your machining capabilities with this high-performance end mill, engineered for durability and precision in every application.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| ISO Category | N |
| Material | Carbide |
| Length Type | Extra Long |
| Milling Cutter Type | End Mills |
| Cutting Direction | Neutral |
| Helix Angle | 40\u00b0 |
| Overall Length | 75mm |
| Cutter Diameter Tolerance | Extra Long |
| End Mill Type | End Mill |
| MFR Part No. | S6146.0 |
| Finish/Coating | Bright |
| Shank Type | Straight |
| Coolant Delivery | External |
| Series | Extra Long |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Cutter Diameter | 6mm |
