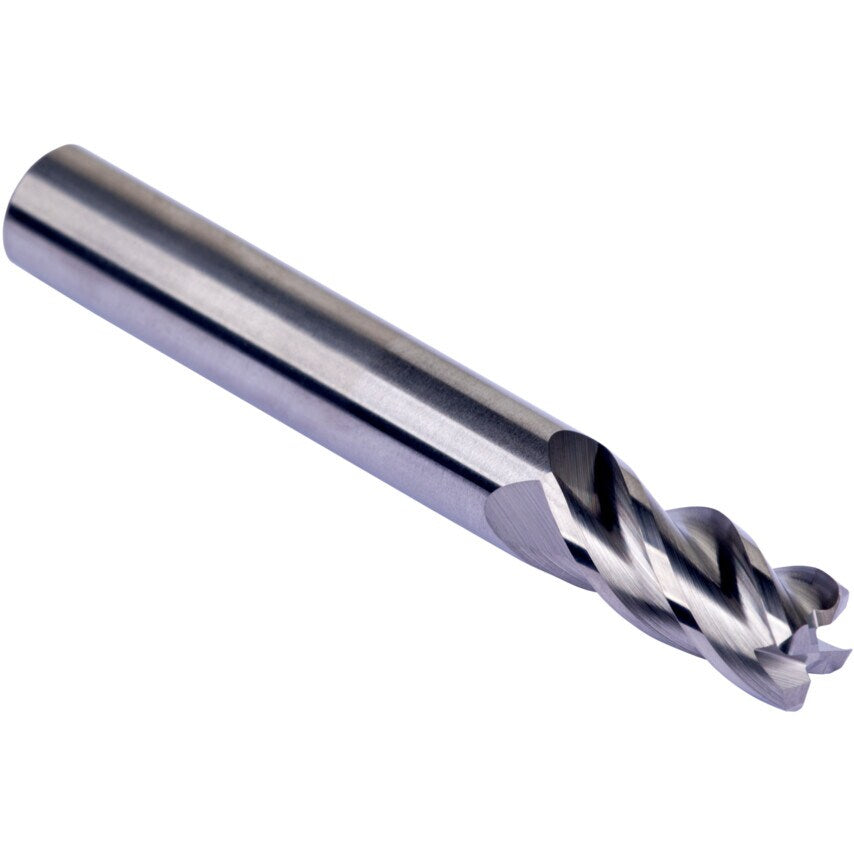

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Coolant Delivery | External |
| Overall Length | 57mm |
| Shank Diameter | 4mm |
| Standards Met | DIN 6535 |
| Flute Type | Helical |
| Cutter Diameter | 4mm |
| Shank Type | Straight |
| Corner Radius | 0.3mm |
| Milling Cutter Type | End Mills |
| Series | Short |
| Helix Angle | 40\u00b0 |
| Length Type | Short |
| System of Measurement | Metric |
| Material | Carbide |
| Number of Flutes | 4 |
| End Mill Type | End Mill |
| Cutting Direction | Neutral |
| MFR Part No. | S6624.0XR0.3 |
| Plunge Type | Centre Cutting |
| Finish/Coating | Bright |
| Cutter Diameter Tolerance | Short |
| Cutter Style | Corner Radius |
| ISO Category | N |
| Flute Length | 12mm |
