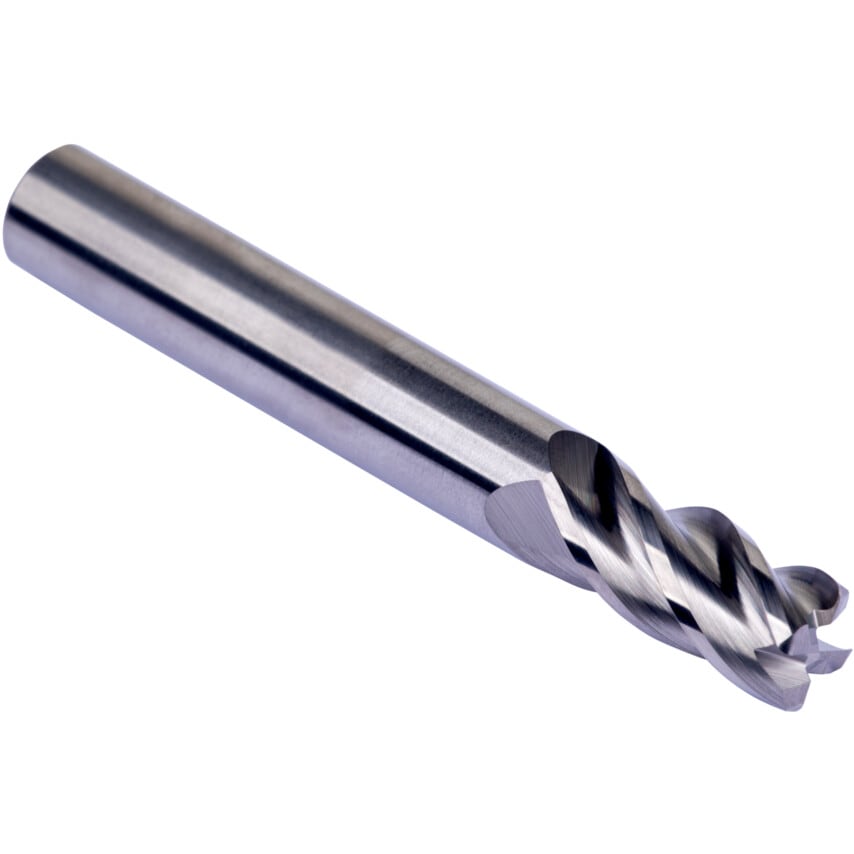

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Delivery | External |
| Cutter Diameter | 16mm |
| Standards Met | DIN 6535 |
| Cutter Style | Corner Radius |
| Overall Length | 92mm |
| Plunge Type | Centre Cutting |
| End Mill Type | End Mill |
| Material | Carbide |
| Helix Angle | 40\u00b0 |
| Series | Short |
| MFR Part No. | S66216.0XR1.0 |
| ISO Category | N |
| Shank Diameter | 16mm |
| Finish/Coating | Bright |
| Corner Radius | 1mm |
| Milling Cutter Type | End Mills |
| Number of Flutes | 4 |
| Flute Length | 32mm |
| Length Type | Short |
| Cutter Diameter Tolerance | Short |
| Cutting Direction | Neutral |
| System of Measurement | Metric |
