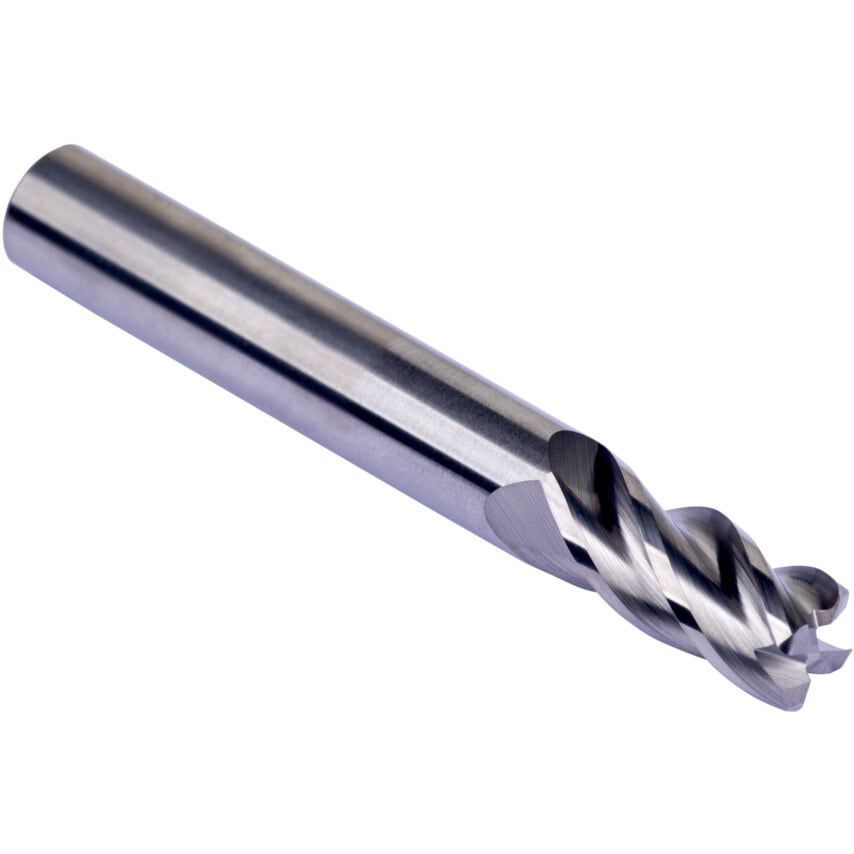

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Plunge Type | Centre Cutting |
| Coolant Delivery | External |
| Cutter Style | Corner Radius |
| Milling Cutter Type | End Mills |
| Number of Flutes | 4 |
| Overall Length | 57mm |
| Length Type | Short |
| Shank Diameter | 4mm |
| Cutter Diameter Tolerance | Short |
| Corner Radius | 0.5mm |
| Flute Length | 12mm |
| Helix Angle | 40\u00b0 |
| Standards Met | DIN 6535 |
| Series | Short |
| Cutting Direction | Neutral |
| Shank Type | Straight |
| Cutter Diameter | 4mm |
| ISO Category | N |
| Finish/Coating | Bright |
| Flute Type | Helical |
| System of Measurement | Metric |
| End Mill Type | End Mill |
| MFR Part No. | S6624.0XR0.5 |
| Material | Carbide |
