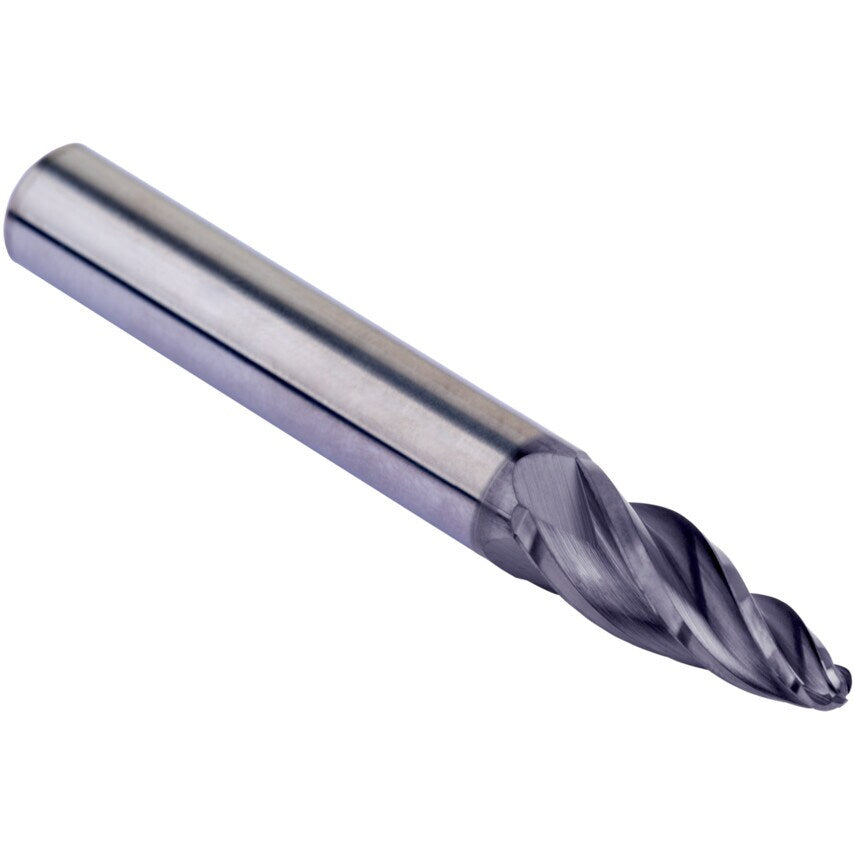

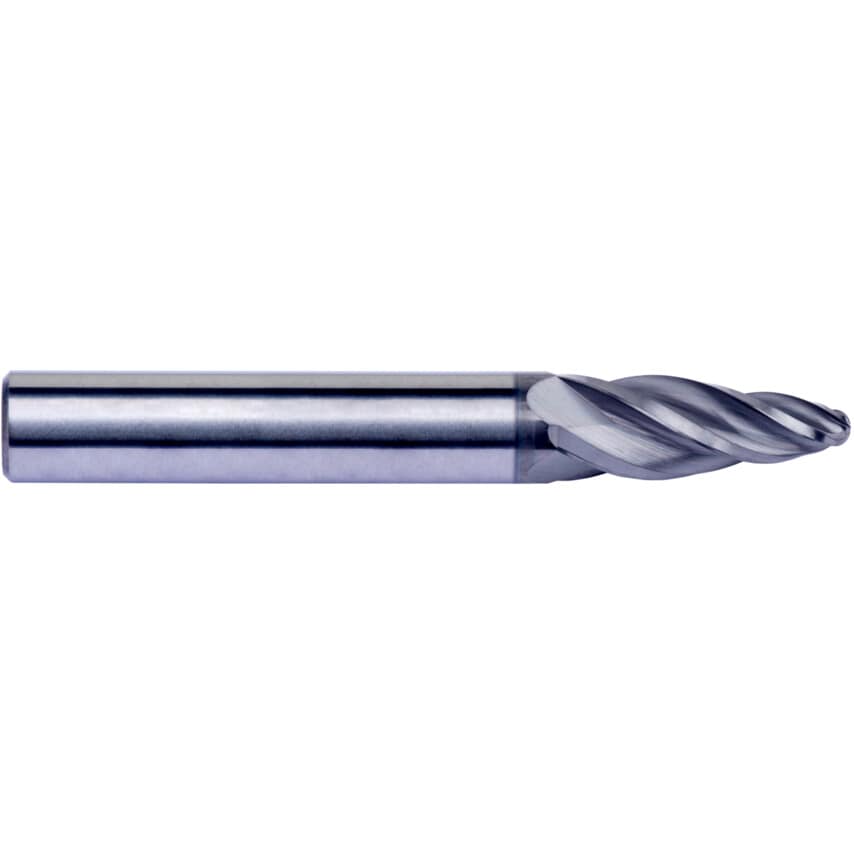

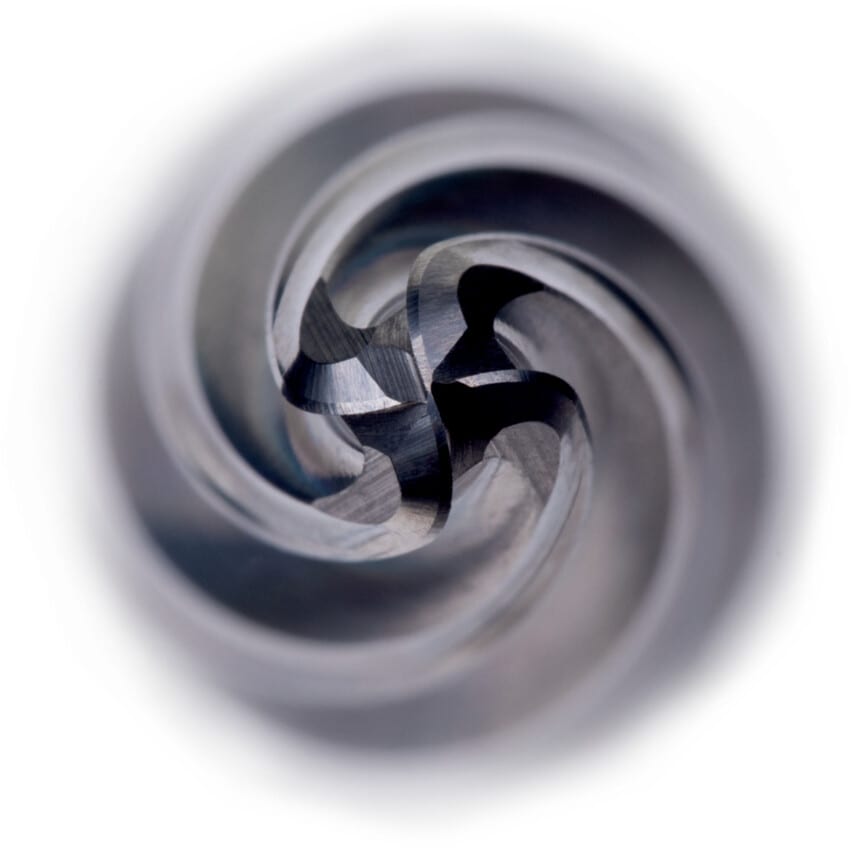

Introducing the Regular Length Barrel End Mill, a versatile and high-performance tool crafted for precision machining in steel, cast steel, and cast iron. This solid carbide end mill features 3 flutes, a 30 helix, and an 8 rake angle, making it ideal for copy milling and turn milling applications. The addition of an AlCrN coating enhances thermal stability, reduces friction, and ensures excellent wear resistance, contributing to prolonged durability. With its well-engineered design and advanced coating technology, this Barrel End Mill from DORMER delivers reliable and efficient results in a wide range of metal machining tasks.Features and Benefits Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials AlCrN coating for thermal stability, reduced friction, excellent wear resistance and prolonged durabilityTypical Applications Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
| System of Measurement | Metric |
| Number of Flutes | 3 |
| MFR Part No. | S79110.0 |
| ISO Category | S |
| Helix Angle | 30\u00b0 |
| Flute Type | Straight |
| Cutter Diameter Tolerance | Medium |
| Cutter Style | Barrel |
| Plunge Type | Non-centre Cutting |
| Corner Radius | 2mm |
| Cutter Diameter | 10mm |
| Coolant Delivery | External |
| Series | Barrel-Shaped End Mill |
| Cutting Direction | Neutral |
| Flute Length | 26mm |
| Material | Carbide |
| Shank Diameter | 10mm |
| Length Type | Regular |
| Shank Type | Straight |
| Finish/Coating | AlCrN |
| Milling Cutter Type | End Mills |
| Standards Met | DIN 6535 |
| Overall Length | 75mm |
| End Mill Type | End Mill |
