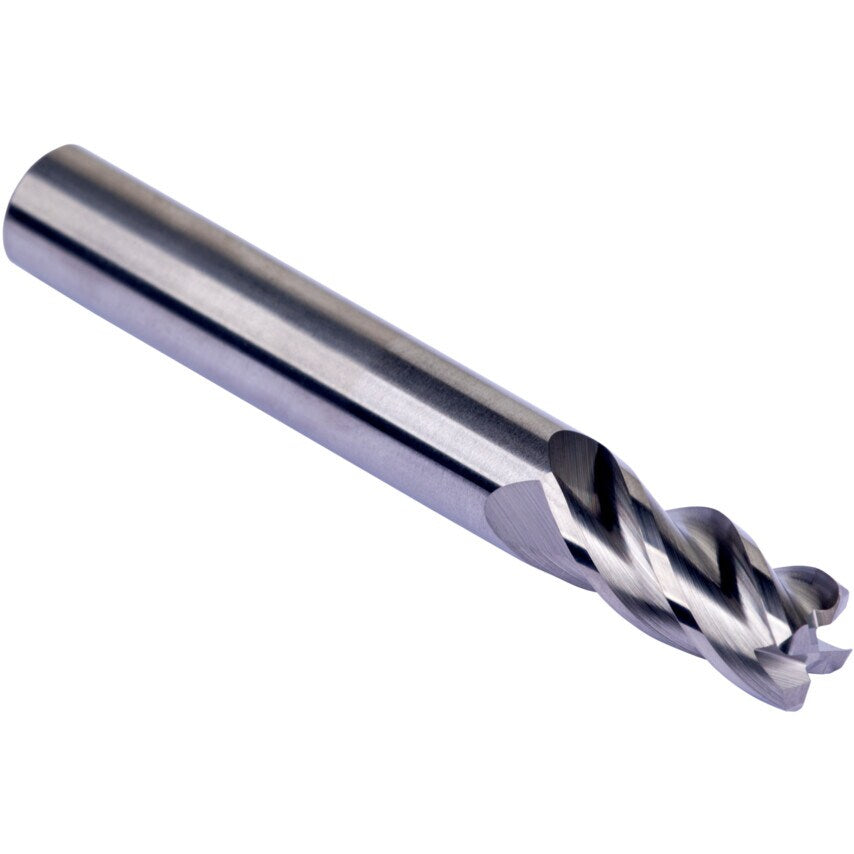

Introducing the Short Series Corner Radius End Mill, a versatile tool engineered for precision machining in non-ferrous metals. With 4 flutes, a 40 helix, and a 10 rake angle, this end mill excels in shoulder milling, plunging, ramping, and helical milling applications. Crafted from Micrograin Carbide, it offers extreme hardness and wear resistance, ensuring prolonged tool life, especially when tackling challenging materials. Elevate your machining efficiency with this high-performance corner radius end mill, designed to deliver reliability and durability in a variety of non-ferrous metal milling operations.Features and Benefits Suited for precision and high-speed machining of aluminium parts in air frame assembly, automotive applications and die and mold, particularly for prototypingTypical Applications N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Cutter Style | Corner Radius |
| Number of Flutes | 4 |
| Milling Cutter Type | End Mills |
| Standards Met | DIN 6535 |
| Cutter Diameter Tolerance | Short |
| Coolant Delivery | External |
| Corner Radius | 4mm |
| Cutting Direction | Neutral |
| Flute Length | 32mm |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length | 92mm |
| End Mill Type | End Mill |
| Cutter Diameter | 16mm |
| Helix Angle | 40\u00b0 |
| Length Type | Short |
| Finish/Coating | Bright |
| System of Measurement | Metric |
| ISO Category | N |
| Shank Diameter | 16mm |
| Plunge Type | Centre Cutting |
| MFR Part No. | S66216.0XR4.0 |
| Series | Short |
| Material | Carbide |
